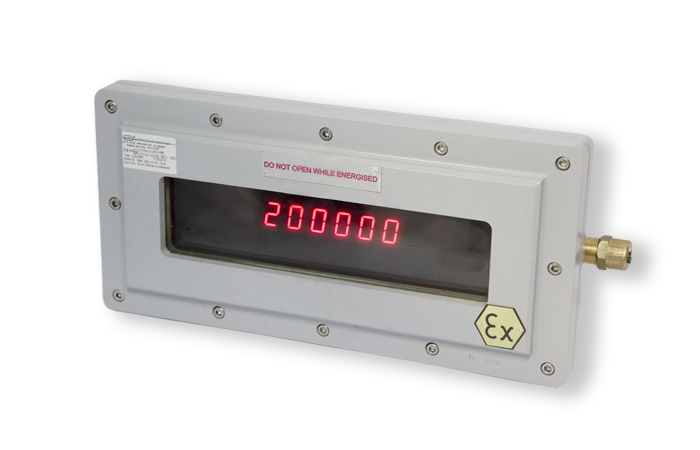

RD20-EX REMOTE DISPLAY

Multipurpose RD series displays are the perfect solution for reading truck scales, crane scales and field process’ from a remote location.

There are various models with character sizes from 20mm -up to 210 mm in height.

Environment
Excitation voltage 12 V DC
Operating voltage and power 12 V DC, 1.55 W
Operating temperature range -20°C +50°C
Storage temperature range -20°C +50°C
Operator handling and Display
Buttons 3 tactile buttons, 0.91 Oled Panel
Housing
Material and Protection class Rail mount, Plastic, IP20
Weight 0.15 kg
Package weight and dimensions 0.2 kg, 13x8x3 cm
Communication
Serial communication port output RS-232 / RS-485                   RS-422
Parallel printer output –                                                                  –
Binary (BCD) output –                                                                  –
Remote display output –                                                                  –
Digital I/O 2 relay outputs (2A) –
Analog output 4-20mA / 0-10V                                   –
Bluetooth –                                                             Bluetooth
Wi-fi

–                                                              Wi-fi
