BB LOAD CELL
20-50-100-200 kg

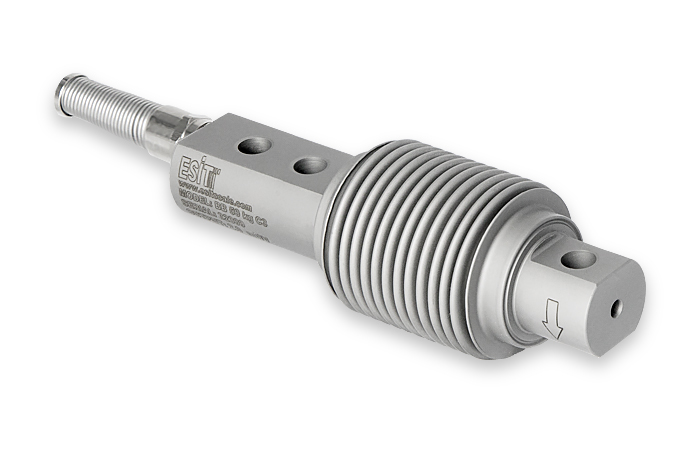

The BB bending beam load cell has been developed for use in electronic weight and force measurement applications under industrial conditions.
They are mostly used in low-capacity applications such as:
• Tank weighing systems
• Platform scales
• Bagging and batching machines
• Conveyor belt scales
A good level of sealing is achieved by a bellow covering the strain gauge area on the stainless-steel body of the load cell.
Features:
-
Stainless steel
-
Easy-to-mount
-
Certified to OIML R60 standards
-
IP68 industrial protection class
-
Hermetic-sealed strain gauge area
Accessories
• J Box Connection Box
Mounting Kits
• BB-HA Mounting Kits – 20–50–100–200 kg
• BB-RM Mounting Kits – 20–50–100–200 kg
• BS-PL Mounting Kits – 200–500–1000–2000 kg
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
BB 200 |
200 kg |
20 g |
300 kg |
|
BB 500 |
500 kg |
50 g |
750 kg |
|
BB 1000 |
1000 kg |
100 g |
1500 kg |
|
BB 2000 |
2000 kg |
200 g |
3000 kg |
| Maximum capacities (Emax) | kg | 20, 50, 100, 200 |
|
Accuracy (OIML R60) |
|
C1 C3 C5 |
| Maximum number of verification intervals | 1000 3000 5000 | |
| Maximum number of verification intervals | Emax/5000,Emax/10000,Emax/20000 | |
|
Combined error |
% |
≤ ±0.05 ≤ ±0.02 ≤ ±0.012 |
|
Creep error over 30 min. (DR) |
% Emax |
0.004 |
|
Minimum load |
% Emax |
0 |
|
Maximum safe overload |
% Emax |
150 |
|
Maximum safe sideload |
% Emax |
100 |
|
Ultimate load |
% Emax |
200 |
|
Stretching (Emax) |
mm |
? 0.5 |
|
Maximum excitation voltage (Umax) |
V |
15 |
| Rated output (Cn) | mV/V | BB20: 2 ± 0.4%, BB 50- 100-200: 2 ± 0.1% |
| Zero balance | %Cn | BB20: ≤±3, BB 50-100- 200: ±1.0 |
|
Input Resistance |
? |
385 ±20 |
|
Output Resistance |
? |
351±3 |
|
Insulation resistance |
M? |
?500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Stainless Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
5±%3 |
|
Cable diameter |
mm |
5 |
|
Weight |
kg |
0.6 |
|
Package dimensions / weight |
cm/kg |
10x27x6/0.7 |
