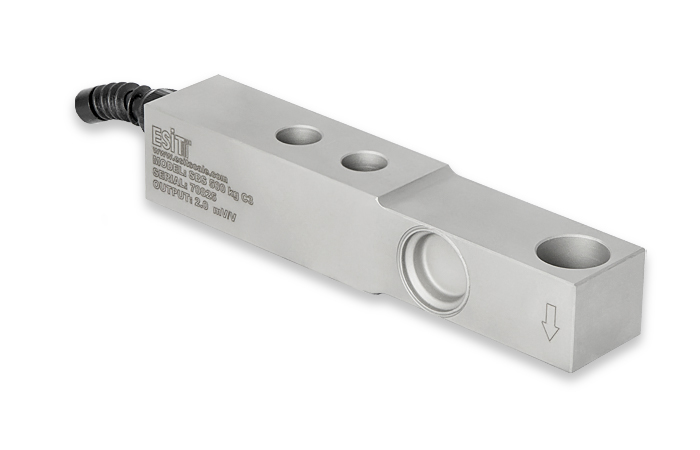

SBS LOAD CELL
200 - 500 - 1000 - 2000 kg
The SBS shear load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. The excellent linearity and reliability of the SBS is enhanced by thermal compensation for the effects of temperature on zero and span stability.
Having a thin profile which is fully resistant to side forces, the SBS shear beam load cell is suitable for:
• low and medium capacity platform scales;
• tank weighing systems;
• automatic weighing equipment;
• process weighing applications.
The strain gauge area is welded in accordance with IP68 standards.
Thanks to its stainless-steel structure, which provides resistance to water and other chemicals, the product is an ideal solution for such industries as:
• Chemicals;
• Petrochemicals;
• Caustic soda;
• Fertilizers.
Features:
-
Stainless steel
-
Easy-to-mount
-
Certified to OIML R60 standards
-
IP68 industrial protection
-
Hermetic-sealed strain gauge area
-
Resistant to side forces
-
Low profile body
Accessories:
•J Box Connection Box
Mounting Kits
• SBS-PL Mounting Kits – 200–500–1000–2000 kg
• SBS-TM Mounting Kits – 200–500–1000–2000 kg
Technical specification:
| Model | Capacities | Minimum Division | Maximum Overload Capacity |
| SBS 200 | 200 kg | 20 g | 300 kg |
| SBS 500 | 500 kg | 50 g | 750 kg |
| SBS 1000 | 1000 kg | 100 g | 1500 kg |
| SBS 2000 | 2000 kg | 200 g | 3000 kg |
Specifications
| Maximum capacities (Emax) | kg | 200, 500, 1000, 2000 |
| Accuracy (OIML R60) | C1, C3 | |
| Maximum number of verification intervals | 1000, 3000 | |
| Minimum verification interval | Emax/5000 Emax/10000 | |
| Combined error | % | ≤ ±0.05, ≤ ±0.02 |
| Creep error over 30 min. (DR) | %Emax | 0.00625 |
| Minimum load | %Emax | 0 |
| Maximum safe overload | %Emax | 150 |
| Maximum safe sideload | %Emax | 100 |
| Ultimate load | %Emax | 300 |
| Stretching (Emax) | mm | ≈ 0.3 |
| Maximum excitation voltage (Umax) | V | 15 |
| Rated output (Cn) | mV/V | 2 ±0.1% |
| Zero balance | %Cn | BS200: ≤±2, BS 500- 1000- 2000: ±1.0 |
| Input Resistance | Ω | 351 ± 3 |
| Output Resistance | Ω | 350 ± 3 |
| Insulation resistance | MΩ | ≥500 |
| Compensated temperature range | °C | -10…+40 |
| Operating temperature range | °C | -40…+80 |
| Load cell material | Stainless Steel | |
| Sealing (EN60529) | IP68 | |
| Cable length | m | 5 ± 3% |
| Cable diameter | mm | 5 |
| Weight | kg | 0.8 |
| Package dimensions / weight | cm/kg | 10x27x6 / 1.0 |
Areas of Use:
Industrial Scales : PL Platform Scales Platform Scales 300-600-1500 kg
Dosage Control Systems
Explosion Proof Systems
Tank Weighing Systems
