200 kg - 500 kg - 1000 kg

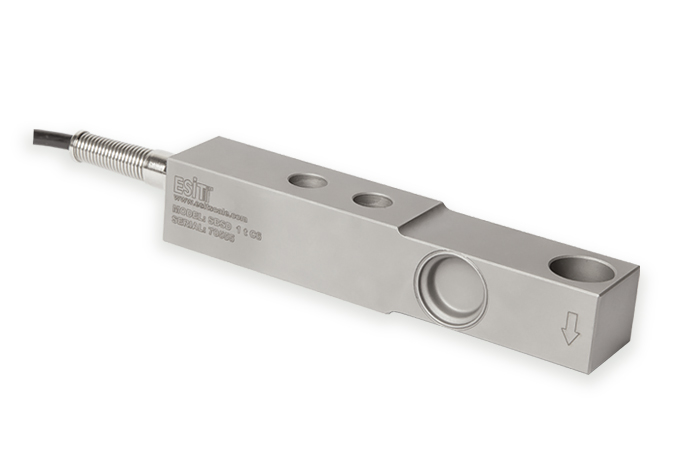

The SBSD shear beam digital load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. The excellent linearity and reliability of the SBSD is enhanced by thermal compensation for the effects of temperature on zero and span stability.
Having a thin profile which is fully resistant to side forces, the SBSD shear beam digital load cell is suitable for:
• Low and medium capacity platform scales;
• Tank weighing systems;
• Automatic weighing equipment;
• Process weighing applications

The strain gauge area is welded in accordance with IP68 standards. Thanks to its stainless-steel structure, which provides resistance to water and other chemicals, the product is an ideal solution for working environments with:
• Chemicals;
• Petrochemicals;
• Caustic soda;
• Fertilizers.
The SSBD digital load cell has faults and warning flags to notify its status to devices connected to the load cell. Therefore, the master devices can detect the normal operation of the loadcell and take the necessary precautions for fault situations.
