STCS LOAD CELL

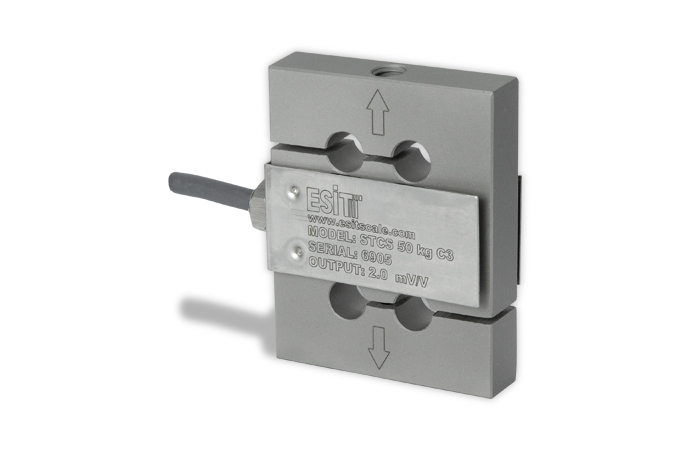

The STCS bending beam load cell has been developed for tension and compression type weight and force measurement applications.
The STCS load cell finds application in tank weighing applications, hopper scales, electromechanical scales, tension-tear test devices, process weighing applications and other similar systems.

It offers a high level of accuracy and features internal thermal compensation that corrects output drifts due to ambient temperature variations. Stainless steel STCS load cells are resistant to all types of weather conditions and protected to IP66 standards.

Features:

  • Stainless steel

  • Easy-to-mount

  • Certified to OIML R60 standards

  • IP66 industrial protection

Accessories:
• J Box Connection Box

Mounting Kits:
• STCS-HA Mounting Kits (50 – 100 – 200 – 500 kg)

Technical specification

Model Capacities Minimum Division Maximum Overload Capacity
STCS 50 50 kg 5 g 75 kg
STCS 100 100 kg 10 g 150 kg
STCS 200 200 kg 20 g 300 kg

Specifications

Maximum capacities (Emax) kg 50 / 100 / 200
Accuracy (OIML R60) C1 / C3
Maximum number of verification intervals 1000 / 3000
Minimum verification interval Emax/5000 / Emax/10000
Combined error % ≤ ±0.05 (C1) / ≤ ±0.02 (C3)
Creep error over 30 min. (DR) % Emax 0.007
Minimum load % Emax 0
Maximum safe overload % Emax 150
Maximum safe sideload % Emax 100
Ultimate load % Emax 200
Stretching (Emax) mm ≤0.4
Maximum excitation voltage (Umax) V 15
Rated output (Cn) mV/V 2 ±0.2% (C1) / 2 ±0.1% (C3)
Zero balance %Cn ≤±1.0
Input Resistance Ω 385 ±20
Output Resistance Ω 351 ±3
Insulation resistance MΩ ≥500
Compensated temperature range °C -10…+40
Operating temperature range °C -40…+80
Load cell material Stainless Steel
Sealing (EN60529) IP66
Cable length m 5 ±3%
Cable diameter mm 5
Weight kg 0.5
Package dimensions / weight cm/kg 10x27x6 / 0.6

Areas of Use:

Bagging Scales

Strength Test Systems

Overload Control Systems
