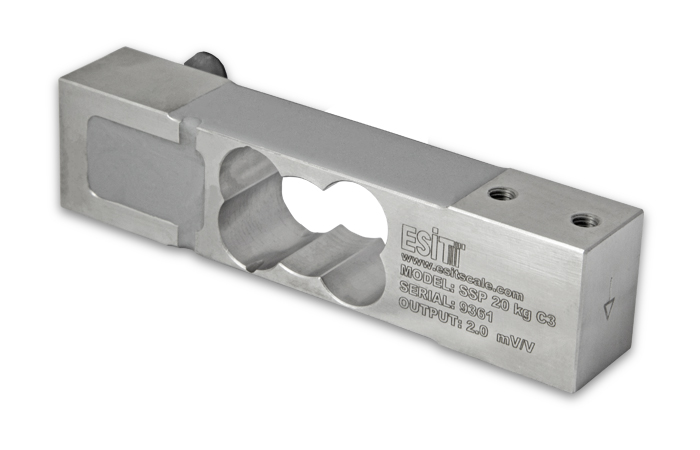

SSP LOAD CELL
20 - 40 - 80 - 120 kg
SSP platform type load cells are capable of measuring weights from a single point. It offers a high level of accuracy and features internal thermal compensation that corrects output drifts due to ambient temperature variations.
Stainless steel SSP load cells have been developed for use in platform scales for low capacity weighing applications in food, chemical and pharmaceutical industries. Suitable for platform sizes of up to 50 x 50 cm, SSP may be mounted in the centre of or under the platform.
Features:
-
Easy-to-mount
-
Stainless Steel
-
IP67 industrial protection
Accessories:
• J Box Connection Box
Technical specification
| Model | Capacities | Minimum Division | Maximum Overload Capacity |
| SSP 20 | 20 kg | 2 g | 20 kg |
| SSP 40 | 40 kg | 4 g | 40 kg |
| SSP 80 | 80 kg | 8 g | 80 kg |
| SSP 120 | 120 kg | 12 g | 120 kg |
| * This is outside the scope of the SSP 10 OIML R60 certificate. |
Specifications
| Maximum capacities (Emax) | kg | 20, 40, 80, 120 |
| Accuracy (OIML R60) | C1, C3 | |
| Maximum number of verification intervals | 1000, 3000 | |
| Minimum verification interval | Emax/5000, Emax/10000 | |
| Combined error | % | ≤ ±0.05, ≤ ±0.02 |
| Creep error over 30 min. (DR) | %Emax | 0.008 %Emax |
| Minimum load | %Emax | 0 %Emax |
| Maximum safe overload | %Emax | 100 %Emax |
| Maximum safe sideload | %Emax | 100 %Emax |
| Ultimate load | %Emax | 200 %Emax |
| Ultimate load | mm | ≤ 0.6 |
| Maximum excitation voltage (Umax) | V | 15 V |
| Rated output (Cn) | mV/V | 2 ± 5% mV/V |
| Zero balance | %Cn | ≤ ±1.0 % Cn |
| Input Resistance | Ω | 385 ±20 Ω |
| Output Resistance | Ω | 351 ±3 Ω |
| Insulation resistance | MΩ | ≥ 500 MΩ |
| Compensated temperature range | °C | -10…+40 °C |
| Operating temperature range | °C | -40…+80 °C |
| Operating temperature range | Stainless Steel | |
| Sealing (EN60529) | IP67 | |
| Cable length | m | 3 ±3% |
| Cable diameter | mm | 5 |
| Weight | kg | 0.8 |
| Package dimensions / weight | cm/kg | 21.5×12.5×7.5 см / 1 kg |
Areas of Use:
Industrial Scales :
PS 3-100 kg Desktop Scales With Single Load Cell Desktop Scales With Single Load Cell 6-15-30-60-100 kg
PS 150-300 kg Scale With Single Load Cell Scale With Single Load Cell 150-300-600 kg
Dosage Control Systems
