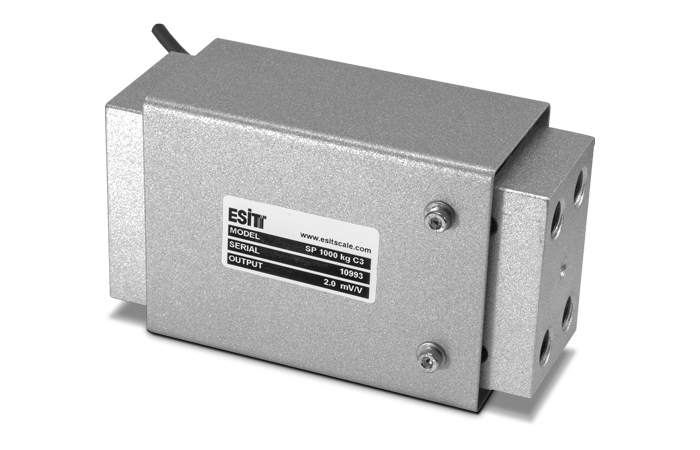

SP LOAD CELL
200 - 500 - 1000 kg
SP platform type load cells are capable of measuring weight from a single point. It offers a high level of accuracy and features internal thermal compensation that corrects output drifts due to ambient temperature variations. It is resistant to momentum forces.
With its steel alloy construction coated with corrosion-retardant paint as well as its strain gauge area, which is isolated using a chemical material, the SP load cells are protected to IP67 standards. Suitable for platform sizes of up to 80 x 80 cm, SP may be mounted in the centre of or under the platform.
This platform type scales with one load cell find application in industrial part counting scales, conveyor scales, roller scales and process weighing applications.
Features:
-
Easy-to-mount
-
Certified to OIML R60 standards
-
IP67 industrial protection
Accessories:
• J Box Connection Box
Technical specification:
| Model | Capacities | Minimum Division | Maximum Overload Capacity |
| TB 200 | 200 kg | 20 g | 200 kg |
| TB 500 | 500 kg | 50 g | 500 kg |
| TB 1000 | 1000 kg | 100 g | 1000 kg |
Specifications
| Maximum capacities (Emax) | kg | 200, 500, 1000 |
| Accuracy (OIML R60) | C1 C3 C4 | |
| Maximum number of verification intervals | 1000 3000 4000 | |
| Minimum verification interval | Emax/5000 / Emax/8000 Emax/10000 | |
| Combined error | % | ≤ ±0.05 ≤ ±0.02 ≤ ±0.015 |
| Creep error over 30 min. (DR) | % Emax | 0.0052 |
| Minimum load | % Emax | 0 |
| Maximum safe overload | % Emax | 100 |
| Maximum safe sideload | % Emax | 100 |
| Ultimate load | % Emax | 200 |
| Stretching (Emax) | mm | ≤0.6 |
| Maximum excitation voltage (Umax) | V | 15 |
| Rated output (Cn) | mV/V | 2 ±5% |
| Zero balance | %Cn | ≤±1.0 |
| Input Resistance | Ω | 385 ±20 |
| Output Resistance | Ω | 351 ±3 |
| Insulation resistance | MΩ | ≥500 |
| Compensated temperature range | °C | -10…+40 |
| Operating temperature range | °C | -40…+80 |
| Load cell material | Steel | |
| Sealing (EN60529) | IP67 | |
| Cable length | m | 3 ±3% |
| Cable diameter | mm | 5 |
| Weight | kg | 2.6 |
| Package dimensions / weight | cm/kg | 21,5×12,5×7,5/ 2,8 kg. |
