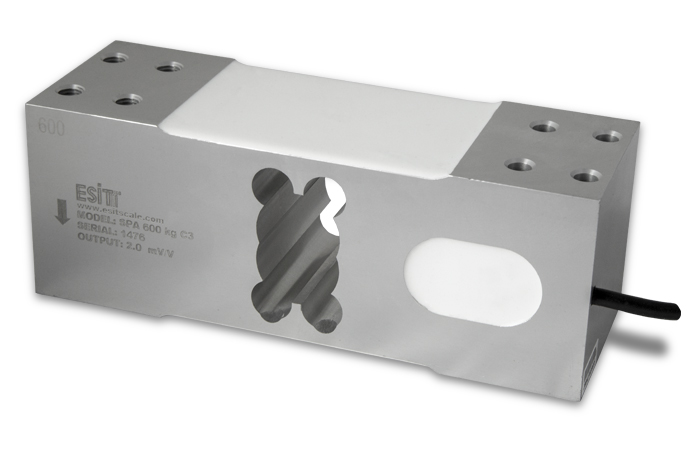

SPA 600 LOAD CELL
600 kg
SPA platform type load cells are capable of measuring weights from a single point. It offers a high level of accuracy and features internal thermal compensation that corrects output drifts due to ambient temperature variations. It is resistant to momentum forces.
With its corrosion-resistant aluminium construction and its strain gauge area isolated with a special chemical material, the SPA load cells are protected against water in accordance with IP55 standards.
Suitable for platform sizes of up to 80 x 80 cm, SPA load cells are produced (600 kg) and they may be mounted in the centre of or under the platform. This platform type scales with one load cell find application in conveyor scales, roller scales and process weighing applications.
Features:
-
Easy-to-mount
-
IP55 industrial protection
Accessories:
• J Box Connection Box
Technical specification:
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
SPA 600 |
600 kg |
120 g |
600 kg |
Specifications
|
Maximum capacities (Emax) |
kg |
600 |
|
Accuracy (OIML R60) |
|
C3 |
|
Maximum number of verification intervals () |
|
3000 |
|
Minimum verification interval () |
|
Emax/5000 |
|
Combined error |
% |
≤ ±0.02 |
|
Creep error over 30 min. (DR) |
%Emax |
0.012 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
100 |
|
Maximum safe sideload |
%Emax |
100 |
|
Ultimate load |
%Emax |
150 |
|
Stretching (Emax) |
mm |
≤±0.7 |
|
Maximum excitation voltage (Umax) |
V |
10 |
|
Rated output (Cn) |
mV/V |
2 ±0.1% |
|
Zero balance |
|
≤ 1.0 |
|
Input Resistance |
|
409±6 |
|
Output Resistance |
|
350±3.5 |
|
Insulation resistance |
|
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Aluminium |
|
Sealing (EN60529) |
|
IP55 |
|
Cable length |
|
3±%3 |
|
Cable diameter |
|
6 |
|
Weight |
|
1.72 |
|
Package dimensions / weight |
|
7x18x12 / 1.8 |
