SC LOAD CELL
10-20т.

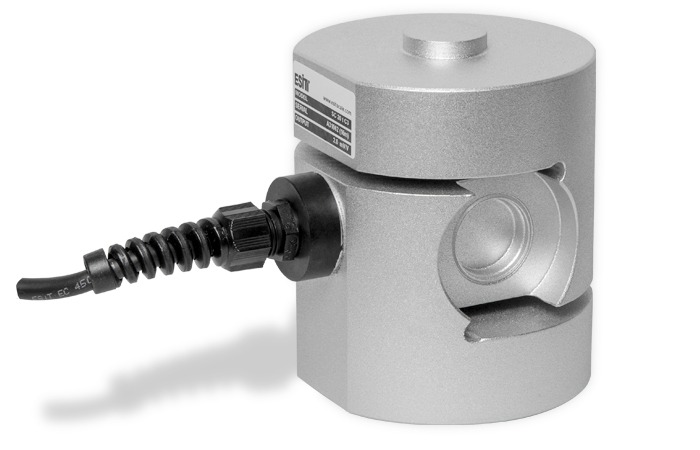

The SC shear beam load cell has been developed for use in high capacity, compression type electronic weight and force measurement applications in industrial environments. The precise and rugged SC load cell offers high resistance to side forces and overload conditions. The SC load cells are suitable for severe industrial conditions, and they find application in:
• High-capacity vehicle scales;
• Platform scales;
• Tank weighing systems;
• Automatic weighing instruments;
• Process weighing applications
With its steel alloy construction coated with corrosion-retardant paint as well as its strain gauge area welded with a stainless-steel cover, SC is protected to IP68 standards meaning that they are fully immersible.
Features:
-
Certified to OIML R60 standards
-
Hermetic-sealed strain gauge area
-
Resistant to side forces
-
Heavy duty
-
IP68 industrial protection
Options:
Accessories:
• J Box Connection Box
Technical specification
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
SC 10 |
10000 kg |
1200 g |
15000 kg |
|
SC 20 |
20000 kg |
2400 g |
30000 kg |
Specifications
|
Maximum capacities (Emax) |
kg |
10000,20000 |
|
Accuracy (OIML R60) |
|
C1, C3, C4 |
|
Maximum number of verification intervals () |
|
1000, 3000, 4000 |
|
Minimum verification interval () |
|
Emax/5000, Emax/5000, Emax/8500 |
|
Combined error |
% |
≤±0.05 ≤ ±0.02 ≤±0.015 |
|
Creep error over 30 min. (DR) |
%Emax |
0.0025 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
%Emax |
100 |
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
mm |
≤ 0.3 |
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2 ±0.1% |
|
Zero balance |
%Cn |
≤ ±1.0 |
|
Input Resistance |
Ω |
385 ±20 |
|
Output Resistance |
Ω |
351 ±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
14 or 16±%3 |
|
Cable diameter |
mm |
8 |
|
Weight |
kg |
10 |
|
Package dimensions / weight |
cm/kg |
25x25x18 / 10.3 |
Areas of Use
Truck Scales (Weighbridges) :
HIPPO-S Modular Steel Platform Heavy Duty Truck Scale Modular Steel Platform Heavy Duty Truck Scale 40-60-80-100 t
DINO Pit Mounted Steel Weighing Platform Pit Mounted Steel Weighing Platform 40-60-80-100 t
JU-S Pitless Mounted Steel Weighing Platform Pitless Mounted Steel Weighing Platform 40-60-80-100 t
CS Steel-Concrete Weighing Platform Steel-Concrete Weighing Platform 40-60-80-100 t
CB Concrete Weighing Platform Concrete Weighing Platform 40-60-80-100 t
AR Dynamic and Static Stationary Axle Weighing Platform Dynamic and Static Stationary Axle Weighing Platform 30 t
AS Dynamic and Static Portable Axle Weighing Platform Dynamic and Static Portable Axle Weighing Platform 30 t
Tank Weighing Systems
