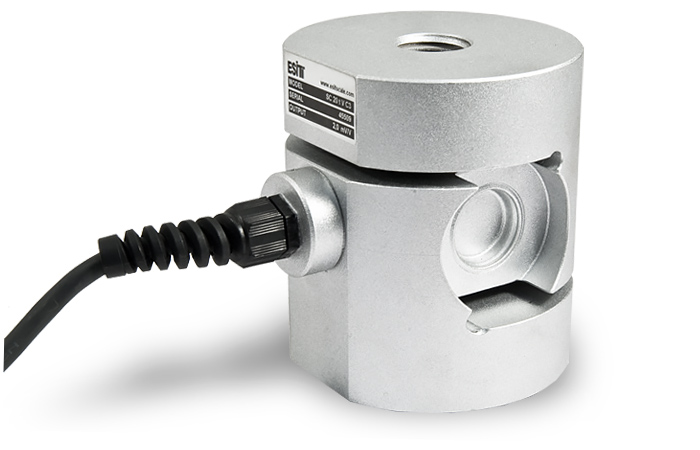

SC-V LOAD CELL
10-20 t.
The SC-V shear beam load cell has been developed for use in high capacity, compression type electronic weight and force measurement applications in industrial environments. The precise and rugged SC-V load cell offers high resistance to side forces and overload conditions.
The SC-V load cells are suitable for severe industrial conditions, and they find application in high-capacity vehicle scales, platform scales, tank weighing systems, automatic weighing instruments and process weighing applications. With its steel alloy construction coated with corrosion-retardant paint as well as its strain gauge area welded with a stainless-steel cover, SC-V is protected to IP68 standards meaning that they are fully immersible.
*This product does not use in tension mode for load over 10 tons.
Features:
-
Features Certified to OIML R60 standards
-
Hermetic-sealed strain gauge area
-
Resistant to side forces
-
Heavy duty
-
IP68 industrial protection
Mounting Kits:
• SC-TM Mounting Kits – 10t, 20t
Technical specification:
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
SC-V 10 |
10000 kg |
1.200 g |
15000 kg |
|
SC-V 20 |
20000 kg |
2.400 g |
30000 kg |
Specifications
|
Maximum capacities (Emax) |
kg |
10000, 20000 |
|
Accuracy (OIML R60) |
|
C1, C3, C4 |
|
Maximum number of verification intervals () |
|
1000, 3000, 4000 |
|
Minimum verification interval () |
|
Emax/3500, Emax/5000, Emax/5000 |
|
Combined error |
% |
≤ ±0.05, ≤ ±0.02, ≤ ±0.015 |
|
Creep error over 30 min. (DR) |
%Emax |
0.0025 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
%Emax |
100 |
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
mm |
0.3 |
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2 ±0.1% |
|
Zero balance |
%Cn |
≤±1.0 |
|
Input Resistance |
|
385 ±20 |
|
Output Resistance |
|
351 ±3 |
|
Insulation resistance |
M? |
500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
14 or 16±%3 |
|
Cable diameter |
mm |
8 |
|
Weight |
kg |
10 |
|
Package dimensions / weight |
cm/kg |
25x25x18 / 10.3 |
