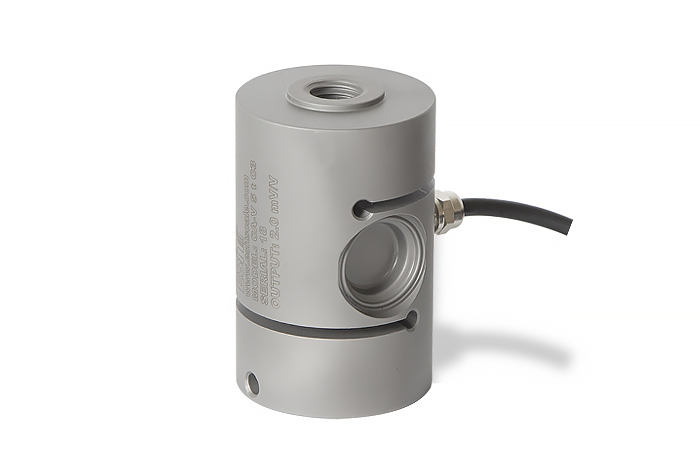

MINI CA-V LOAD CELL
500kg -1-2-5t.
CA-V load cells are based on the shear force principle to measure forces in the compression direction. It has been developed for use in high capacity, electronic weight and force measurement applications in industrial environments. The precise and rugged CA-V load cell offers high resistance to side forces and overload conditions.
Stainless steel CA-V load cells are suitable for severe industrial conditions. The CA-V's strain gauge area is hermetically sealed, and it is in IP 68 protection class. The CA-V load cell is not influenced by the adverse weather conditions and chemicals. CA-V finds applications in high-capacity vehicle scales, platform scales, tank weighing systems, automatic weighing instruments and process weighing applications.
Features:
-
Stainless steel
-
Certified to OIML R60 standards
-
Hermetic-sealed strain gauge area
-
Resistant to side forces
-
Heavy duty
-
IP68 Industrial protection
Technical specification:
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
CA-V 500 |
500 kg |
50 g |
750 kg |
|
CA-V 1000 |
1000 kg |
100 g |
1500 kg |
|
CA-V 2000 |
2000 kg |
200 g |
3000kg |
|
CA-V 5000 |
5000 kg |
500 g |
7500kg |
Specifications
|
Maximum capacities (Emax) |
kg |
500, 1000, 2000, 5000 |
|
Accuracy (OIML R60) |
|
C1, C2 |
|
Maximum number of verification intervals () |
|
1000, 2000 |
|
Minimum verification interval () |
|
Emax/5000, Emax/10000 |
|
Combined error |
% |
≤±0.05 ≤ ±0.02 |
|
Creep error over 30 min. (DR) |
%Emax |
0.00625 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
%Emax |
100 |
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
mm |
≤ 0.3 |
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2 ±0.1% |
|
Zero balance |
%Cn |
MCA-V-1000-2000-5000 ≤±1.0 |
|
Input Resistance |
Ω |
385 ±20 |
|
Output Resistance |
Ω |
351 ±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
5 ±%3 |
|
Cable diameter |
mm |
5 |
|
Weight |
kg |
|
|
Package dimensions / weight |
cm/kg |
|
