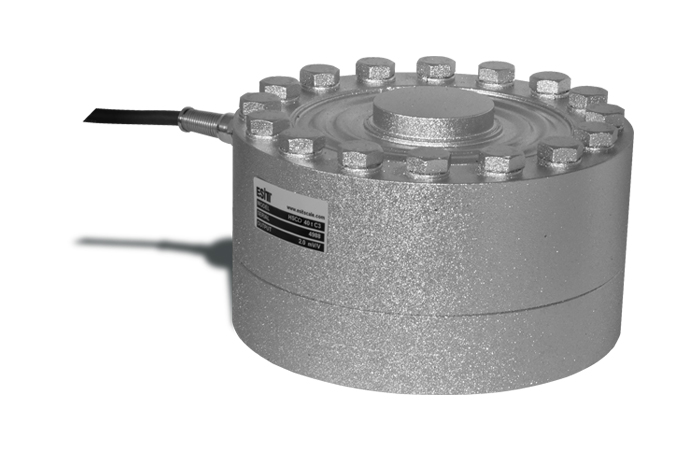

HSC LOAD CELL
40-60-100 t.
The HSC shear beam load cell has been developed for use in high capacity, compression type electronic weight and force measurement applications in industrial environments. The precise and rugged HSC load cell offers high resistance to side forces and overload conditions. The HSC load cells are suitable for severe industrial conditions, and they find applications in:
high-capacity vehicle scales, railway scales, tank weighing systems and process weighing applications. With its steel alloy construction coated with corrosion-retardant paint as well as its strain gauge area welded with a stainless-steel cover, HSC is protected to IP68 standards meaning that they are fully immersible.
Features:
- Certified to OIML R60 standards
- Resistant to side forces
- Heavy duty
- Hermetic-sealed strain gauge area
- Thin profile body
- IP68 industrial protection
Options:
Accessories:
• J Box Connection Box
Mounting Kits:
• HSC-TM Mounting Kits – 40 т, 60 т, 100 т
• HSC-ELT Mounting Kits – 40 т, 60 т, 100 т
Technical specification:
|
Model |
Capacities |
Minimum Division |
Maximum Overload Capacity |
|
HSC 40 |
40000 kg |
8kg |
60000 kg |
|
HSC 60 |
60000 kg |
12kg |
90000 kg |
|
HSC 100 |
100000 kg |
20kg |
150000 kg |
Specifications
|
Maximum capacities (Emax) |
kg |
500, 1000, 2000, 5000 |
|
Accuracy (OIML R60) |
|
C1, C2 |
|
Maximum number of verification intervals () |
|
1000, 2000 |
|
Minimum verification interval () |
|
Emax/5000, Emax/10000 |
|
Combined error |
% |
K] ±0.05 ≤ ±0.02 |
|
Creep error over 30 min. (DR) |
%Emax |
0.0039 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
%Emax |
100 |
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
mm |
≤ 0.3 |
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2 ±0.1% |
|
Zero balance |
%Cn |
≤ ±1.0 |
|
Input Resistance |
Ω |
385±20 |
|
Output Resistance |
Ω |
351±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
13±%3 |
|
Cable diameter |
mm |
8 |
|
Weight |
kg |
22.5 |
|
Package dimensions / weight |
cm/kg |
25x33x23 / 24.5 |
Areas of use
Truck Scales (Weighbridges):
RW Pit Wagon Scales Pit Wagon Scales (Single or Double) 120-240 t
Dosage Control System
Tank Weighing Systems
