HC LOAD CELL
200t, 300t, 400t, 500t, 700t, 1000t

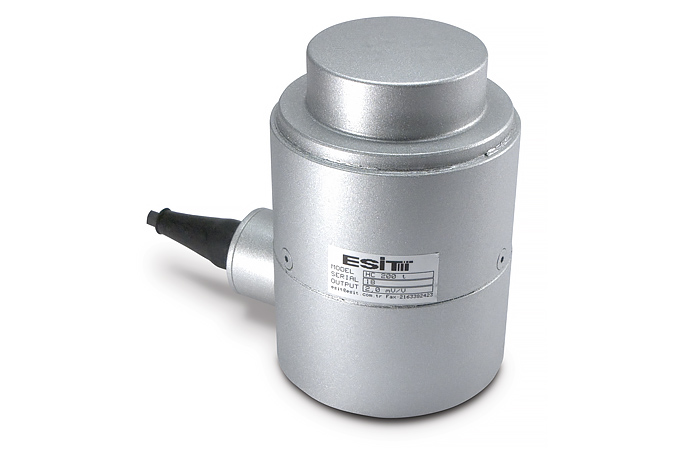

ТThe HC compression type load cell is a column-type weight and force sensor, developed especially for industrial use in high-capacity electronic weighing applications. With its steel alloy construction coated with corrosion-retardant paint, HC is protected to IP65 standards.
These load cells are suitable for high-capacity test and force measurement devices and other similar systems which do not require a high level of accuracy.
Features:
- High capacity
- Heavy duty
- IP65 industrial protection
Specifications
|
Maximum capacities (Emax) |
t |
200t, 300t, 400t 500t, 700t, 1000t |
|
Accuracy (OIML R60) |
|
|
|
Maximum number of verification intervals () |
|
|
|
Minimum verification interval () |
|
|
|
Combined error |
% |
≤ ±0.5 |
|
Creep error over 30 min. (DR) |
%Emax |
0 |
|
Minimum load |
%Emax |
200 |
|
Maximum safe overload |
|
|
|
Maximum safe sideload |
%Emax |
400 |
|
Ultimate load |
|
|
|
Stretching (Emax) |
|
|
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2mV/V |
|
Zero balance |
%Cn |
≤ ±1.0 |
|
Input Resistance |
Ω |
385±20 |
|
Output Resistance |
Ω |
350±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
|
|
Cable length |
m |
13±%3 |
|
Cable diameter |
mm |
8 |
|
Weight |
kg |
11.2 |
|
Package dimensions / weight |
cm/kg |
25x25x17.5 - 12.2 |
Areas of Use
Strength Test Systems
Tank Weighing Systems
