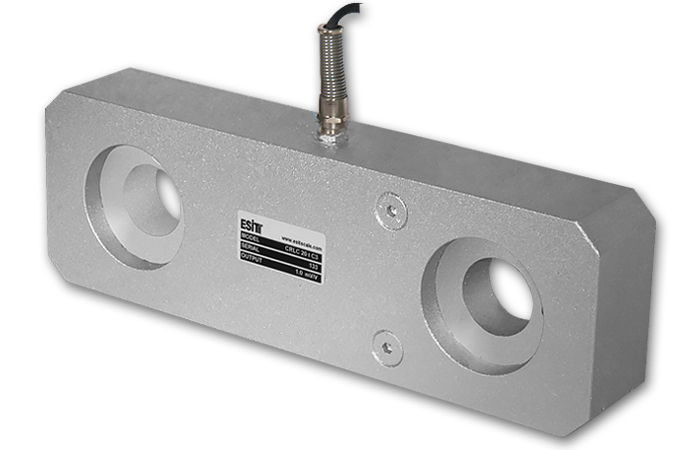

CRLC LOAD CELL
20 t
CRLC load cell is a tension type force sensor, which features safety plates and washers on each side for protection against overloads.
With its steel alloy construction coated with corrosion-retardant paint, the CRLC is protected to IP66 standards meaning that it is resistant to dust and water.
They are used for overload detection and measure the weight of the load being lifted by cranes and lifting machines.
Features
- Protected against overloads
- IP66 industrial protection
Accessories:
• J Box Connection Box
Technical specification:
Specifications
|
Maximum capacities (Emax) |
kg |
20000 |
|
Accuracy (OIML R60) |
|
|
|
Maximum number of verification intervals () |
|
|
|
Minimum verification interval () |
|
|
|
Combined error |
% |
≤ ±0.5 |
|
Creep error over 30 min. (DR) |
|
|
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
|
|
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
|
|
|
Maximum excitation voltage (Umax) |
V |
10 |
|
Rated output (Cn) |
mV/V |
1mV/V |
|
Zero balance |
%Cn |
≤ ±2.0 |
|
Input Resistance |
Ω |
380±20 |
|
Output Resistance |
Ω |
351±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP66 |
|
Cable length |
m |
5±%3 |
|
Cable diameter |
mm |
5 |
|
Weight |
kg |
9.7 |
|
Package dimensions / weight |
cm/kg |
32x34x15 / 10.2 |
Areas of Use
Overload Control Systems
