WTB LOAD CELL
4500 kg

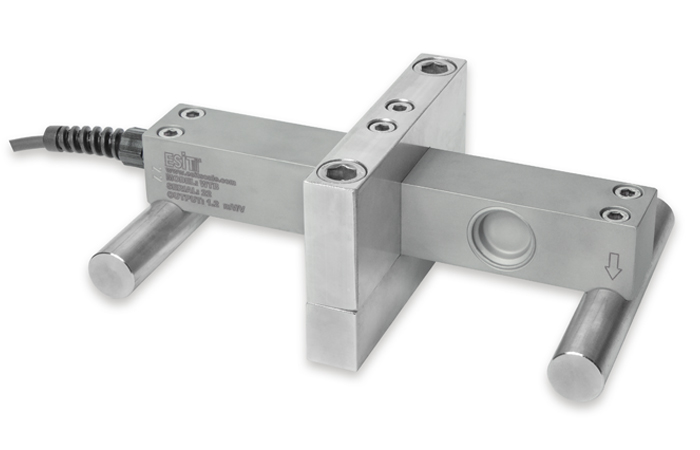

WTB cable tension type load cells are designed specially for cranes and lifting systems. They are mounted on the permanent cables of the lifting mechanism, and they sense the load exerted on the cables. With its stainless-steel construction as well as its welded strain gauge area, WTB is protected to IP68 standards meaning that it is fully resistant to dust, water and chemicals.
WTB load cells provide:
• Overload control for such lifting machines as cranes and elevators;
• Measure the weight of the load being lifted.
Features:
- Suitable for cable lengths of 5-11 meters
- IP68 industrial protection
Accessories:
• J Box Connection Box
Technical specification:
Specifications.
|
Maximum capacities (Emax) |
kg |
4500 |
|
Accuracy (OIML R60) |
|
|
|
Maximum number of verification intervals () |
|
|
|
Minimum verification interval () |
|
|
|
Combined error |
% |
≤ ±1 |
|
Creep error over 30 min. (DR) |
|
|
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
|
|
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax) |
|
|
|
Maximum excitation voltage (Umax) |
V |
15 |
|
Rated output (Cn) |
mV/V |
2mV/V |
|
Zero balance |
%Cn |
≤ ±2.0 |
|
Input Resistance |
Ω |
385 ±20 |
|
Output Resistance |
Ω |
351±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Stainless Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
8±%3 |
|
Cable diameter |
mm |
5 |
|
Weight |
kg |
3.3 |
|
Package dimensions / weight |
cm/kg |
25x25x18 / 3.5 |
Areas of Use
Overload Control Systems
