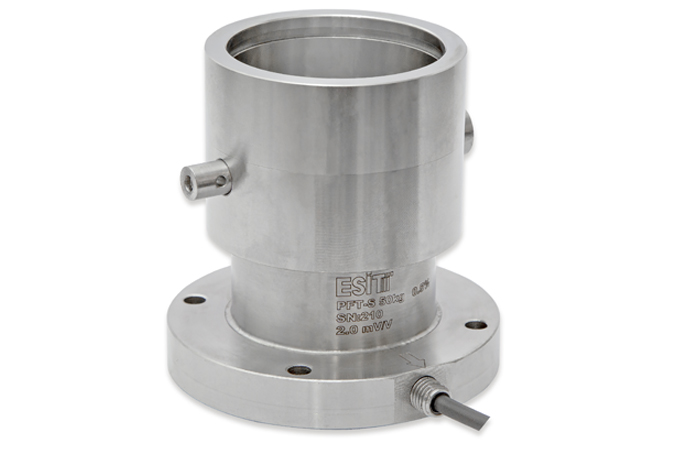

PFT-S LOAD CELL
0.5 – 1 – 2 kN
PFT-S is a roller type load cell developed for special applications where roller systems are used. It is affixed to the roller's axle in winding systems and senses the load exerted upon the shaft.
PFT-S enduring against corrosion with its stainless-steel construction, also PFT-S is protected to IP68 standards meaning that they are protected against dust and water. It can be easily installed with a ball bearing which is affixed to inside the load cell. Thereby, we can learn and set the tension of the material which surrounds the roller.
Features:
- Resistant to side forces
- IP55 industrial protection
Technical specification:
Specifications
|
Maximum capacities (Emax) |
N |
500-1000-2000 |
|
Maximum number of verification intervals (nLC) |
|
1000 |
|
Minimum verification internal (Vmin) |
|
|
|
Combined error |
% |
≤ ±0.5 |
|
Creep error over 30 min. (DR) |
% |
≤ ±0.5 |
|
Minimum load |
%Emax |
0.5 |
|
Maximum safe overload |
%Emax |
150 |
|
Maximum safe sideload |
% |
100 |
|
Ultimate load |
%Emax |
300 |
|
Stretching (Emax load) |
|
|
|
Maximum excitation voltage (Umax) |
V |
10 |
|
Rated output (Cn) |
mV/V |
2mV/V |
|
Zero balance |
%Cn |
≤ ±2.0 |
|
Input resistance |
Ω |
385 ±20 |
|
Output resistance |
Ω |
351 ±3 |
|
Insulation resistance |
MΩ |
≥5000 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cells material |
|
Stainless Steel |
|
Sealing (EN 60529) |
|
IP65 |
|
Cable length |
m |
5±%3 |
|
Cable outer calibre |
mm |
5 |
|
Weight kg |
kg |
1.3 |
|
Package dimensions / weight |
cm/kg |
14.5x23x6 - 1.5 |
Areas of Use
Overload Control Systems
