DSB LOAD CELL
15 t

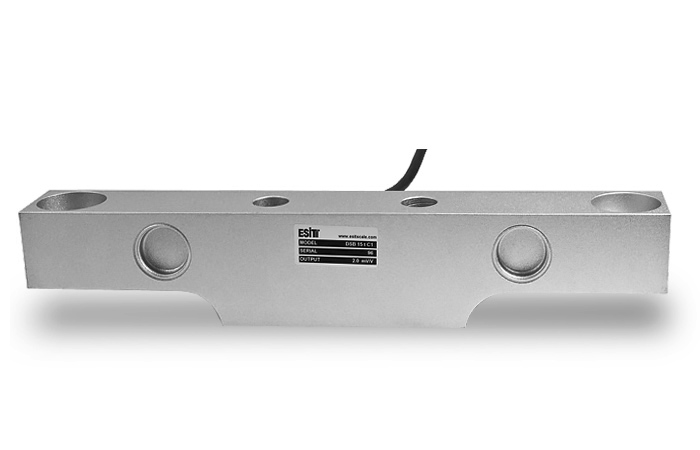

The DSB shear beam load cell has been developed for use in double-point electronic weight and force measurement applications. The precise and rugged DSB load cell is suitable for industrial environments and offers high resistance to side forces and overload conditions.
With its steel alloy construction coated with corrosion-retardant paint as well as its strain gauge area, which is welded with a stainless-steel cover, DSB is protected to IP68 standards meaning that it is fully immersible.
DSB load cells find application in vehicle scales, tank weighing systems, axle weighing systems and other special applications.
Features:
- Resistant to side forces
- Double loading points
- IP68 industrial protection
Accessories:
• J Box Connection Box
Technical specification:
|
Maximum capacities (Emax) |
kg |
15000 |
|
Accuracy (OIML R60) |
|
|
|
Maximum number of verification intervals () |
|
|
|
Minimum verification interval () |
|
|
|
Combined error |
% |
≤ ±0.3 |
|
Creep error over 30 min. (DR) |
|
|
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
200 |
|
Maximum safe sideload |
|
|
|
Ultimate load |
%Emax |
100 |
|
Stretching (Emax) |
|
|
|
Maximum excitation voltage (Umax) |
|
|
|
Rated output (Cn) |
mV/V |
2mV/V |
|
Zero balance |
%Cn |
≤ ±2.0 |
|
Input Resistance |
Ω |
210 |
|
Output Resistance |
Ω |
180 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP68 |
|
Cable length |
m |
13±%3 |
|
Cable diameter |
mm |
6 |
|
Weight |
kg |
7.6 |
|
Package dimensions / weight |
cm/kg |
32x34x15 / 8 |
Areas of Use
Onboard Weighing Systems
Strength Test Systems
