CTD LOAD CELL
10 t - 20 t

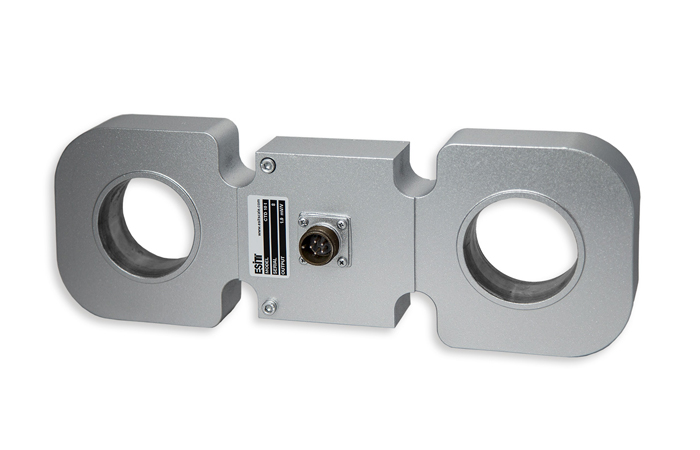

The CTD load cell is a tension force sensor. Thanks to the cable connection with the connector, it provides an easy solution for different needs. CTD load cells, which are coated with special paint resistant to corrosion from alloy steel, are protected against dust and water in IP 66 class.
CTD load cells provide overload control for cranes and lifting machines and measure the weight of the load being lifted.
Features:
- IP66 industrial protection
- Cable connection with connector
Technical specification:
Specifications
|
Maximum capacities (Emax) |
kg |
10000, 20000 |
|
Combined error |
% |
≤ ±0.033 |
|
Minimum load |
%Emax |
0 |
|
Maximum safe overload |
%Emax |
150 |
|
Ultimate load |
%Emax |
300 |
|
Maximum excitation voltage (Umax) |
V |
2 |
|
Rated output (Cn) |
mV/V |
≤ ±2.0 |
|
Input Resistance |
Ω |
380±20 |
|
Output Resistance |
Ω |
351±3 |
|
Insulation resistance |
MΩ |
≥500 |
|
Compensated temperature range |
°C |
-10...+40 |
|
Operating temperature range |
°C |
-40...+80 |
|
Load cell material |
|
Steel |
|
Sealing (EN60529) |
|
IP66 |
|
Weight |
kg |
8.7 |
|
Package dimensions / weight |
kg |
43,5x19,5x8,5 / 9,1 |
