AX3 LOAD CELL
500 kg

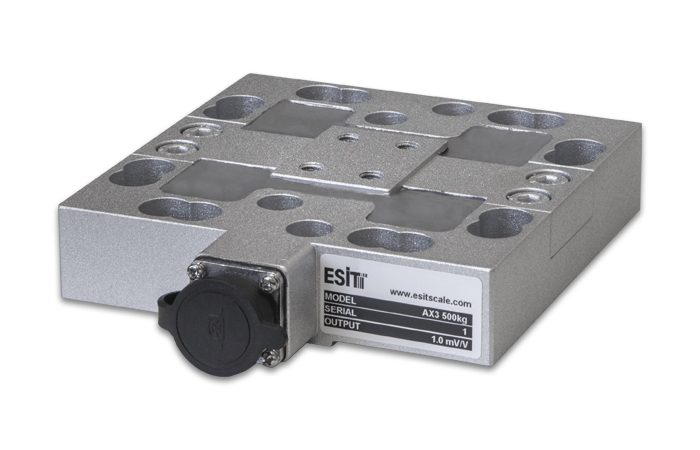

The AX3 model load cell is designed to measure the forces on three perpendicular axes simultaneously. It can measure forces independently in three separate axes up to 500 kg.
The steel alloyed body is coated with a special anti-corrosion paint.
The main areas of use are automotive, robotics and industrial test systems.
Features:
- Simultaneous force measurement in three vertical axes
- IP 65 protection class
- Compact design
- Easy installation
Technical specification:
Specifications
|
Maximum capacity (Emax) |
kg |
500 |
|
|
Total error |
% |
≤ ±0,2 |
|
|
Minimum load |
%Emax |
0 |
|
|
Maximum safe overload |
%Emax |
150 |
|
|
Ultimate load |
%Emax |
200 |
|
|
Maximum excitation voltage (Umax) |
V |
10 |
|
|
Rated output (Cn) |
mV/V |
X |
0,70 |
|
Y |
0,70 |
||
|
Z |
0,55 |
||
|
Rated output Crosstalk |
X-axis; |
Y≤%1 |
Z≤%5 |
|
Y-axis; |
X≤%5 |
Z≤%10 |
|
|
Z-axis; |
X≤%1 |
Y≤%1 |
|
|
Zero balance |
%Cn |
≤ ±4,0 |
|
|
Input Resistance |
Ω |
245±20 |
|
|
Output Resistance |
Ω |
700±4 |
|
|
Insulation resistance |
MΩ |
≥500 |
|
|
Compensated temperature range |
°C |
-10...+40 |
|
|
Operating temperature range |
°C |
-40...+80 |
|
|
Load cell material |
|
Steel |
|
|
Sealing (EN60529) |
|
IP65 |
|
|
Weight |
kg |
2,85 |
|
|
Package dimensions |
cm |
24x15x6 |
|
