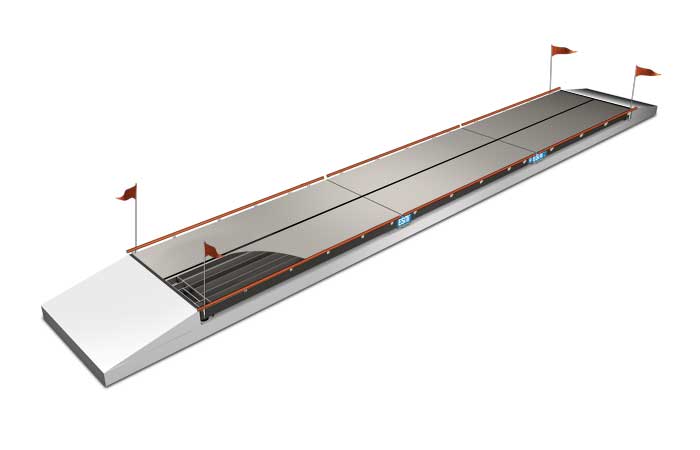

HIPPO-A – MODULAR STEEL PLATFORM TRUCK SCALE
Modular Stell Platform Truck Scale 40-60 t.
- Hippo A is a modular steel weighbridge with pit-mount and surface-mount options.
- Designed to meet European standards in its respective industry, Hippo offers a strong static build which is suitable for use in every sector where legal loading and weight measurement is required.
- Hippo A weighbridges feature a modular structure with a width of 3 m and are produced in various lengths from 4 m to 24 m with 2 m intervals.
- Thanks to its modular structure, Hippo can be easily assembled and is suitable for international container shipping.
- Hippo steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling, easy cleaning and ideal height.
- Hippo A vehicle scales are equipped with SC load cells and SC EL rubber mounting kits as well as PWI-T microprocessor-based electronic weighing terminals as standard.
Features
- Rubber pads
- Multiple load cells
- Low profile
- Dust covers
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket
- data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Options:
Technical specification
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 040T-HI-A-0304 | 40 | 400 | 20 | 3 x 4 |
Steel |
4 | SC | J-4 | PWI-T |
| 040T-HI-A-0306 | 40 | 400 | 20 | 3 x 6 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-HI-A-0308 | 40 | 400 | 20 | 3 x 8 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-HI-A-0310 | 40 | 400 | 20 | 3 x 10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-A-0304 | 60 | 400 | 20 | 3 x 4 |
Steel |
4 | SC | J-4 | PWI-T |
| 060T-HI-A-0306 | 60 | 400 | 20 | 3 x 6 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-A-0308 | 60 | 400 | 20 | 3 x 8 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-A-0310 | 60 | 400 | 20 | 3 x 10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-A-0312 | 60 | 400 | 20 | 3 x 12 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-A-0314 | 60 | 400 | 20 | 3 x 14 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-A-0316 | 60 | 400 | 20 | 3 x 16 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-A-0318 | 60 | 400 | 20 | 3 x 18 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-HI-A-0320 | 60 | 400 | 20 | 3 x 20 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-HI-A-0322 | 60 | 400 | 20 | 3 x 22 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-HI-A-0324 | 60 | 400 | 20 | 3 x 24 |
Steel |
10 | SC | J-10 | PWI-T |
Explanation
**Loadcell
| Model | SC |
| Protection Class | IP68 |
| Mounting Kits | SC-EL |
| Fixed operating temperature interval | -10°C до +40°C |
| Operating temperature interval | -40°C до +80°C |
***Indicator
| Model | PWI-T |
| Protection Class | IP54 |
| Feeding tension and strength | 90–265 VAC / 60 W |
| Operating temperature interval | -10°C до +40°C |
J-Box connection box
| Protection class | IP66 |
| Material | Aluminium |
Environment
| Fixed operating temperature interval | -10°C до +40°C |
| Operating temperature interval | -40°C до +80°C |
| Feeding tension and strength | -40°C до +80°C |
