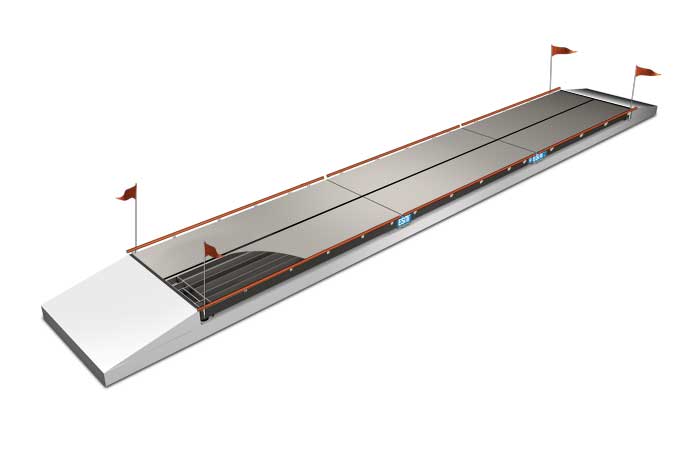

HIPPO-S MODULAR STEEL PLATFORM HEAVY DUTY TRUCK SCALE
Modular Stell Platform Heavy Duty Truck Scale 40-60-80-100 t
- Hippo is a modular steel weighbridge with pit-mount and surface-mount options.
- Designed to meet European standards in its respective industry, Hippo offers a strong static build which is suitable for use in every sector where legal loading and weight measurement is required.
- Hippo weighbridges feature a modular structure with a width of 3 m and are produced in various lengths from 4 m to 24 m with 2 m intervals.
- Thanks to its modular structure, Hippo can be easily assembled and is suitable for international container shipping.
- Steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling, easy cleaning, and ideal height.
- Hippo vehicle scales are equipped with SC load cells and SC EL rubber mounting kits as well as PWI-T microprocessor-based electronic weighing terminals as standard.
Features
- Rubber pads
- Multiple load cells
- Low profile
- Dust covers
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket
- data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Опции:
Technical specification:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 040T-HI-S-0304 | 40 | 400 | 20 | 3×4 |
Steel |
4 | SC | J-4 | PWI-T |
| 040T-HI-S-0306 | 40 | 400 | 20 | 3×6 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-HI-S-0308 | 40 | 400 | 20 | 3×8 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-HI-S-0310 | 40 | 400 | 20 | 3×10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-S-0304 | 60 | 400 | 20 | 3×4 |
Steel |
4 | SC | J-4 | PWI-T |
| 060T-HI-S-0306 | 60 | 400 | 20 | 3×6 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-S-0308 | 60 | 400 | 20 | 3×8 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-S-0310 | 60 | 400 | 20 | 3×10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-HI-S-0312 | 60 | 400 | 20 | 3×12 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0314 | 60 | 400 | 20 | 3×14 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0316 | 60 | 400 | 20 | 3×16 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0318 | 60 | 400 | 20 | 3×18 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0320 | 60 | 400 | 20 | 3×20 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0322 | 60 | 400 | 20 | 3×22 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-HI-S-0324 | 60 | 400 | 20 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-HI-S-0314 | 80 | 1000 | 50 | 3×14 |
Steel |
8 | SC | J-8 | PWI-T |
| 080T-HI-S-0316 | 80 | 1000 | 50 | 3×16 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-HI-S-0318 | 80 | 1000 | 50 | 3×18 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-HI-S-0320 | 80 | 1000 | 50 | 3×20 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-HI-S-0322 | 80 | 1000 | 50 | 3×22 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-HI-S-0324 | 80 | 1000 | 50 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-HI-S-0316 | 100 | 1000 | 50 | 3×16 |
Steel |
8 | SC | J-8 | PWI-T |
| 100T-HI-S-0318 | 100 | 1000 | 50 | 3×18 |
Steel |
8 | SC | J-8 | PWI-T |
| 100T-HI-S-0320 | 100 | 1000 | 50 | 3×20 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-HI-S-0322 | 100 | 1000 | 50 | 3×22 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-HI-S-0324 | 100 | 1000 | 50 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
**Loadcell
|
Model |
SC |
|
Protection Class |
IP68 |
|
Mounting Kits |
SC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C c |
***Indicator
|
Model |
PWI-T |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
90-265VAC 60W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
|
