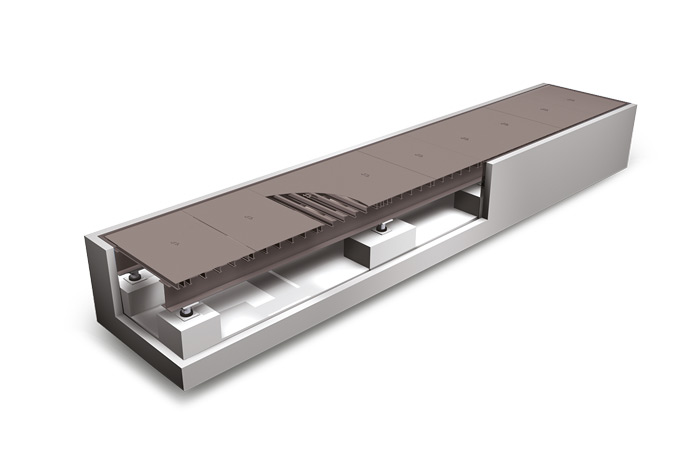

DINO PIT MOUNTED STEEL WEIGHING PLATFORM
Pit Mounted Stell Weighing Platform 400-60-80-100 t.
- Dino is a pit mounted steel weighbridge, which offers a robust static structure and long-term serviceability even under the most difficult industrial conditions.
- Although, in appearance, Dino is similar to traditional mechanical vehicle scales, it is actually based on fully electronic vehicle scale technology.
- Dino does not cause any bulging on the ground and can only be noticed by its stripes or colour, providing a larger space for manoeuvring of the vehicles that are being weighed as well as enabling other vehicles move freely.
- Dino steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling and easy cleaning.
- Dino vehicle scales are equipped with load cells as well as microprocessor-based electronic weighing terminals as standard.
Features
- Rubber pads
- Multiple load cells
- Low profile
- Dust covers
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Options:
Technical specification:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 040T-HI-A-0304 | 40 | 400 | 20 | 3 x 4 |
Steel |
4 | SC | J-4 | PWI-T |
| 040T-HI-A-0306 | 40 | 400 | 20 | 3 x 6 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-HI-A-0308 | 40 | 400 | 20 | 3 x 8 | Steel | 6 | SC | J-6 | PWI-T |
| 040T-HI-A-0310 | 40 | 400 | 20 | 3 x 10 | Steel | 6 | SC | J-6 | PWI-T |
| 060T-HI-A-0304 | 60 | 400 | 20 | 3 x 4 | Steel | 4 | SC | J-4 | PWI-T |
| 060T-HI-A-0306 | 60 | 400 | 20 | 3 x 6 | Steel | 6 | SC | J-6 | PWI-T |
| 060T-HI-A-0308 | 60 | 400 | 20 | 3 x 8 | Steel | 6 | SC | J-6 | PWI-T |
| 060T-HI-A-0310 | 60 | 400 | 20 | 3 x 10 | Steel | 6 | SC | J-6 | PWI-T |
| 060T-HI-A-0312 | 60 | 400 | 20 | 3 x 12 | Steel | 8 | SC | J-8 | PWI-T |
| 060T-HI-A-0314 | 60 | 400 | 20 | 3 x 14 | Steel | 8 | SC | J-8 | PWI-T |
| 060T-HI-A-0316 | 60 | 400 | 20 | 3 x 16 | Steel | 8 | SC | J-8 | PWI-T |
| 060T-HI-A-0318 | 60 | 400 | 20 | 3 x 18 | Steel | 10 | SC | J-10 | PWI-T |
| 060T-HI-A-0320 | 60 | 400 | 20 | 3 x 20 | Steel | 10 | SC | J-10 | PWI-T |
| 060T-HI-A-0322 | 60 | 400 | 20 | 3 x 22 | Steel | 10 | SC | J-10 | PWI-T |
| 060T-HI-A-0324 | 60 | 400 | 20 | 3 x 24 | Steel | 10 | SC | J-10 | PWI-T |
**Loadcell
|
Model |
SC |
|
Protection Class |
IP68 |
|
Mounting Kits |
SC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
***Indicator
|
Model |
PWI-T |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
90-265VAC 60W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
|
|
* Multi interval option available. ** You can find detailed information about Load cells and Mounting Kits, Load cell and Mounting Kit catalogue. *** You can find detailed information about the indicators used with Truck Scales, Indicator and Control Devices catalogue. |
|
