DINO-A PIT TYPE TRUCK SCALE

Home / Truck scales (weighbridges) / Truck scales / DINO-A PIT TYPE TRUCK SCALE

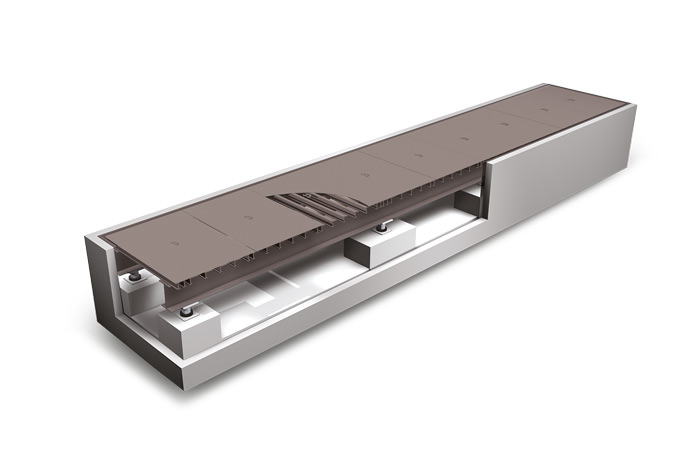

Pit Mounted Steel Weighing Platform 40-60-80-100 t.

Dino-A is a pit mounted steel weighbridge, which offers a robust static structure and long-term serviceability even under the most difficult industrial conditions.
Although, in appearance, Dino-A is similar to traditional mechanical vehicle scales, it is actually based on fully electronic vehicle scale technology.
Dino-A does not cause any bulging on the ground and can only be noticed by its stripes or colour, providing a larger space for manoeuvring of the vehicles that are being weighed as well as enabling other vehicles to move freely.
Dino-A steel weighbridge is designed not only to provide robustness and long-term durability, but also to offer easy assembly, easy handling and easy cleaning.
Dino-A vehicle scales are equipped with load cells as well as microprocessor-based electronic weighing terminals as standard.

Features

Technical specification:

**Loadcell

Model	SC
Protection Class	IP68
Mounting Kits	SC-EL
Fixed operating temperature interval	-10°C ... +40°C
Operating temperature interval	-40°C ... +80°C

***Indicator

Model	PWI-T
Protection Class	IP54
Feeding tension and strength	90-265VAC 60W
Operating temperature interval	-10°C ... +40°C

J-Box connection box

Protection class	IP66
Material	Aluminium

Environment

Fixed operating temperature interval	-10°C ... +40°C
Operating temperature interval	-40°C ... +80°C
Feeding tension and strength
* Multi interval option available. You can find detailed information about Load cells and Mounting Kits, in Load cell and Mounting Kit catalogue. * You can find detailed information about the indicators used with Truck Scales, in Indicator and Control Devices catalogue.
