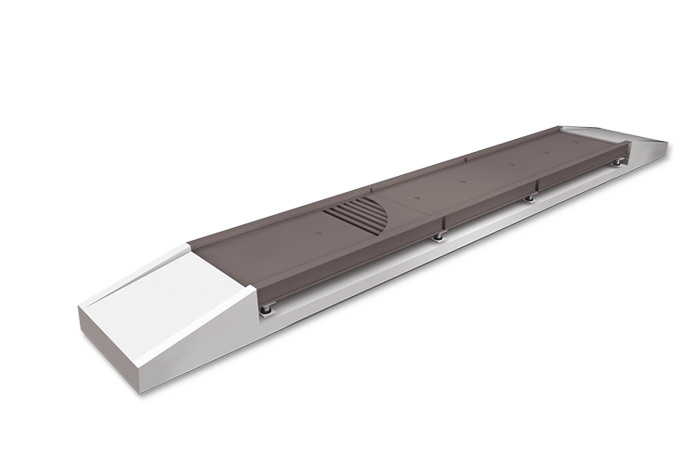

JU–S PITLESS MOUNTED STEEL WEIGHING PLATFORM
Pitless Mounted Stell Weighing Platform 40-60-80-100 t.
-
JU-S is a steel weighbridge which has been developed based on long-term research and development.
-
The name Jumbo refers to the scale's modular structure that enables weighing of even the largest vehicles.
-
Jumbo was designed not only to provide a perfect weighing process, but also to offer long-term durability, easy assembly, easy handling, easy cleaning and ideal height.
-
The number of load cells on JU-S is at least two more than that on its likes.
-
This provides homogeneous load distribution, making the load cells even more serviceable.
-
Available in various sizes and capacities, JU-S truck scales are used in combination with SC load cells and PWI-T electronic weighing terminals as standard.
-
However, they can be integrated with other products and customized to suit other fields and conditions of use. For example, the company offers relay output models to be used with ex-proof and filling scales in the presence of flammable and explosive materials.
Properties
- Rubber pads
- Multiple load cells
- Low profile
- Dust covers
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket
- data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Options:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 040T-JU-S-0304 | 40 | 400 | 20 | 3×4 |
Steel |
4 | SC | J-4 | PWI-T |
| 040T-JU-S-0306 | 40 | 400 | 20 | 3×6 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-JU-S-0308 | 40 | 400 | 20 | 3×8 |
Steel |
6 | SC | J-6 | PWI-T |
| 040T-JU-S-0310 | 40 | 400 | 20 | 3×10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-JU-S-0304 | 60 | 400 | 20 | 3×4 |
Steel |
4 | SC | J-4 | PWI-T |
| 060T-JU-S-0306 | 60 | 400 | 20 | 3×6 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-JU-S-0308 | 60 | 400 | 20 | 3×8 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-JU-S-0310 | 60 | 400 | 20 | 3×10 |
Steel |
6 | SC | J-6 | PWI-T |
| 060T-JU-S-0312 | 60 | 400 | 20 | 3×12 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-JU-S-0314 | 60 | 400 | 20 | 3×14 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-JU-S-0316 | 60 | 400 | 20 | 3×16 |
Steel |
8 | SC | J-8 | PWI-T |
| 060T-JU-S-0318 | 60 | 400 | 20 | 3×18 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-JU-S-0320 | 60 | 400 | 20 | 3×20 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-JU-S-0322 | 60 | 400 | 20 | 3×22 |
Steel |
10 | SC | J-10 | PWI-T |
| 060T-JU-S-0324 | 60 | 400 | 20 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-JU-S-0314 | 80 | 1000 | 50 | 3×14 |
Steel |
8 | SC | J-8 | PWI-T |
| 080T-JU-S-0316 | 80 | 1000 | 50 | 3×16 |
Steel |
8 | SC | J-8 | PWI-T |
| 080T-JU-S-0318 | 80 | 1000 | 50 | 3×18 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-JU-S-0320 | 80 | 1000 | 50 | 3×20 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-JU-S-0322 | 80 | 1000 | 50 | 3×22 |
Steel |
10 | SC | J-10 | PWI-T |
| 080T-JU-S-0324 | 80 | 1000 | 50 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-JU-S-0316 | 100 | 1000 | 50 | 3×16 |
Steel |
8 | SC | J-8 | PWI-T |
| 100T-JU-S-0318 | 100 | 1000 | 50 | 3×18 |
Steel |
8 | SC | J-8 | PWI-T |
| 100T-JU-S-0320 | 100 | 1000 | 50 | 3×20 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-JU-S-0322 | 100 | 1000 | 50 | 3×22 |
Steel |
10 | SC | J-10 | PWI-T |
| 100T-JU-S-0324 | 100 | 1000 | 50 | 3×24 |
Steel |
10 | SC | J-10 | PWI-T |
**Loadcell
|
Model |
SC |
|
Protection Class |
IP68 |
|
Mounting Kits |
SC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
***Indicator
|
Model |
PWI-T |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
90-265VAC 60W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
|
|
* Multi interval option available. ** You can find detailed information about Load cells and Mounting Kits, in Load cell and Mounting Kit catalogue. *** You can find detailed information about the indicators used with Truck Scales, in Indicator and Control Devices catalogue. |
|
