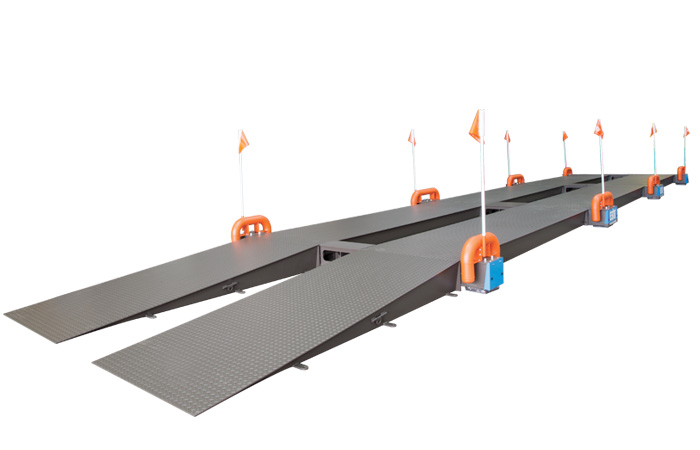

KOMODO PORTABLE WEIGHBRIDGE WITHOUT INFRASTRUCTURE
Portable Weighbridge Without Infrastructure
-
Komodo is an economical and durable vehicle scale with a steel body.
-
Komodo, Static calculations of the steel-construction weighbridge are made for 150% overload.
Technical specification:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 040T-KMD-0305-PWIT | 40 | 400 | 20 | 3×5 |
Steel |
4 | SC-V / CA-V | J-4 | PWI-T |
| 040T-KMD-0309-PWIT | 40 | 400 | 20 | 3×9 |
Steel |
6 | SC-V / CA-V | J-6 | PWI-T |
| 040T-KMD-0314-PWIT | 40 | 400 | 20 | 3×14 |
Steel |
8 | SC-V / CA-V | J-8 | PWI-T |
| 040T-KMD-0318-PWIT | 40 | 400 | 20 | 3×18 |
Steel |
10 | SC-V / CA-V | J-10 | PWI-T |
| 060T-KMD-0314-PWIT | 60 | 400 | 20 | 3×14 |
Steel |
8 | SC-V / CA-V | J-8 | PWI-T |
| 060T-KMD-0318-PWIT | 60 | 400 | 20 | 3×18 |
Steel |
10 | SC-V / CA-V | J-10 | PWI-T |
| 060T-KMD-0323-PWIT | 60 | 400 | 20 | 3×23 |
Steel |
12 | SC-V / CA-V | 2 X J-6 | PWI-T |
**Loadcell
|
Model |
SC-V / CA-V |
|
Protection Class |
IP68 |
|
Mounting Kits |
SC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C c |
***Indicator
|
Model |
PWI-T |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
90-265VAC 60W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
|
