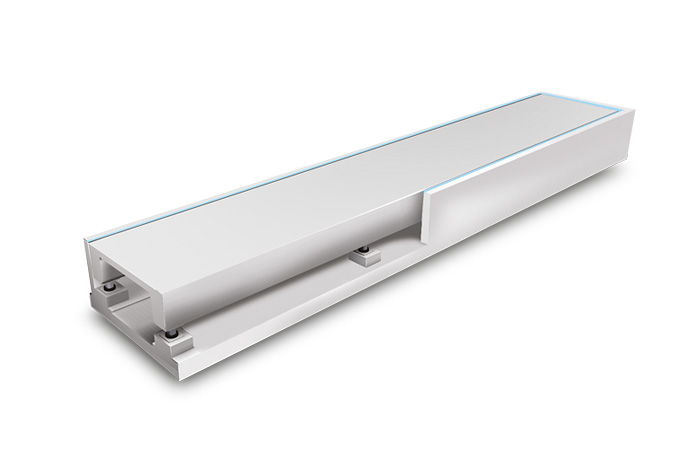

CB CONCRETE WEIGHING PLATFORM

Concrete Weighing Platform 40-60-80-100 t

  • CB weighbridges are built of reinforced concrete.

  • Although the construction work is a little laborious, the savings and the superior features it provides make it worth the effort. With its reinforced concrete construction, CB offers considerable cost savings as compared to steel weighbridges.

  • Therefore CB is an ideal weighing solution where the cost of steel weighbridges, as well as their shipment exceeds the cost of construction works.

  • Designed to offer an easy mounting process, CB weighbridge is built with a scale pit.

  • Once formworks and iron reinforcement are done, they are filled with concrete.

  • Stainless, non-decay and maintenance-free CS concrete weighbridges easily adjust to the weighing environment and are capable of withstanding heavy conditions. Since it is fully covered on top, it does not let in any dust, debris or mud.

Features

  • Rubber pads
  • Multiple load cells
  • Low profile
  • Steel cable housings
  • Lightning protection
  • Assigning incremental sequence numbers to every weighing ticket
  • Memory capacity to store 100,000 weighing operations
  • Capability to recognize vehicles of fixed tare values 10 user-definable ticket data fields
  • Detailed reporting between given dates
  • Ability to edit ticket and report formats
  • Access to any data based on given criteria
  • Printer connection
  • Label and report printing
  • Legal metrology approval
  • CE certificate

Options:


Technical specification:

Model

Nominal capacity (ton)

Minimum capacity (kg)

Sections e=d* (kg)

Platform size (m)

Platform

Loadcell number

Loadcell model

J-Box

Indicator

100T-CB-0316 100 1000 50 3×16 Бетон 4 HSC J-4 PWIT
100T-CB-0318 100 1000 50 3×18 Бетон 4 HSC J-4 PWIT
100T-CB-0316 100 1000 50 3×16 Бетон 6 HSC J-6 PWIT
100T-CB-0318 100 1000 50 3×18 Бетон 6 HSC J-6 PWIT

**Loadcell

Model

HSC

Protection Class

IP68

Mounting Kits

HSC-EL

Fixed operating temperature interval

-10°C ... +40°C

Operating temperature interval

-40°C ... +80°C

***Indicator

Model

PWI-T

Protection Class

IP54

Feeding tension and strength

90-265VAC 60W

Operating temperature interval

-10°C ... +40°C

J-Box connection box

Protection class

IP66

Material

Aluminium

Environment

Fixed operating temperature interval

-10°C ... +40°C

Operating temperature interval

-40°C ... +80°C

Feeding tension and strength



* Multi interval option available.

** You can find detailed information about Load cells and Mounting Kits, in  Load cell and Mounting Kit catalogue.

*** You can find detailed information about the indicators used with Truck Scales, in Indicator and Control Devices catalogue.
