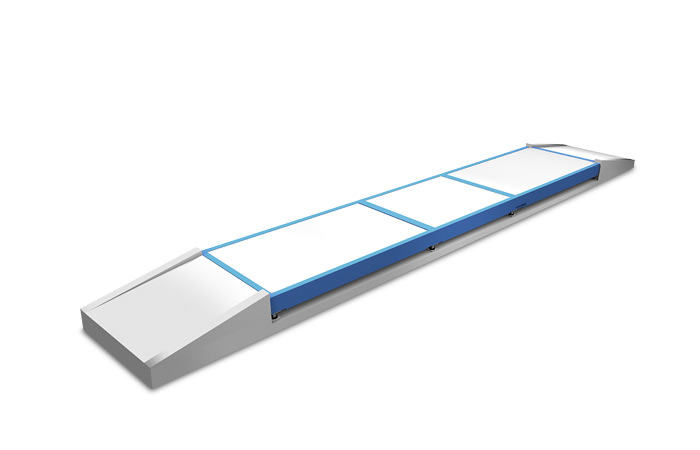

CS STEEL– CONCRETE WEIGHING PLATFORM

Steel- Concrete Weighing Platform 40-60-80-100 t

With their robust construction, CS type concrete weighbridges offer considerable cost savings, and a very long service as compared to other models.
Easy-to-mount steel frames are fitted at the location where the scale is mounted and once reinforced with iron, they are filled with concrete.
Although mounting the weighbridge is a little laborious, the savings and the superior features it provides make it worth the effort.
Stainless, non-decay and maintenance-free CS weighbridges easily adjust to the weighing environment and are capable of withstanding heavy conditions.
Since it is fully covered on top, it does not let in any dust, debris or mud.
CS weighbridges feature a modular structure with a width of 350 cm and are produced in various lengths from 4 m to 24 m.
These are at least 50 cm wider than conventional scales, which ensures an easy and secure weighing operation.

Technical specification:

**Loadcell

Model	SC
Protection Class	IP68
Mounting Kits	SC-EL
Fixed operating temperature interval	-10°C ... +40°C
Operating temperature interval	-40°C ... +80°C

***Indicator

Model	PWI-T
Protection Class	IP54
Feeding tension and strength	90-265VAC 60W
Operating temperature interval	-10°C ... +40°C

J-Box connection box

Protection class	IP66
Material	Aluminium

Environment

Fixed operating temperature interval	-10°C ... +40°C
Operating temperature interval	-40°C ... +80°C
Feeding tension and strength
* Multi interval option available. You can find detailed information about Load cells and Mounting Kits, in Load cell and Mounting Kit catalogue. * You can find detailed information about the indicators used with Truck Scales, in Indicator and Control Devices catalogue.
