AR DYNAMIC AND STATIC STATIONARY AXLE WEIGHING PLATFORM
Dynamic and Static Stationary Axle Weighing Platform 30 t.

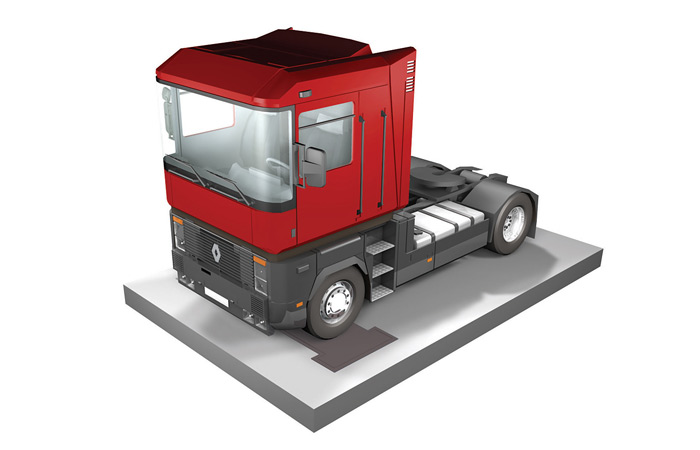

AR stationary axle weighing scales enable both static and dynamic weighing of vehicles.
- In static weighing, the vehicle stops on the platform to let each axle to be weighed individually whereas in dynamic weighing the vehicle passes over the platform with a constant speed of approximately 7 km per hour.
- The weighing result can be viewed on a screen and total value can be seen from the remote display unit.
- This product cannot be used for legal trade or calculating the net cargo weight by weighing axle weights separately. It has been developed specifically for measuring axle weight.
- Capable of easily handling even the busiest weighing traffic, the system can be integrated with a computer to produce audio signals in case of overloading and is able to keep records of all weighing operations.
Properties
- Slim profile
- Easy assembly to any required place
- Requires minimum space to operate
- Fully protected weighing platform
- Resistant to dust, mud, water and snow
- High weighing accuracy
- Microprocessor-controlled digital weighing terminal
- Capable of displaying the weight of each axle
Options:
Technical specification:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| 030T-AR-0933 | 30 | 200 | 10 | 0,90 x 3,30 | Стоманена | 4 | SC | J-4 | PWI-T |
**Loadcell
|
Model |
SC |
|
Protection Class |
IP68 |
|
Mounting Kits |
SC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
***Indicator
|
Model |
LCA-B-AR |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
12-24 VAC 6W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP-66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
|
|
* Multi interval option available. ** You can find detailed information about Load cells and Mounting Kits, in Load cell and Mounting Kit catalogue. *** You can find detailed information about the indicators used with Truck Scales, in Indicator and Control Devices catalogue. |
|
