DR-B DYNAMIC RAILWAY WAGON SCALE
Dynamic Railway Wagon Scale
DR-B Dynamic Railway Wagon scales are automatic weighing instruments which can take measurements without separating wagons from the train. The total weight of wagons and the train combination is determined by evaluating the weights of each axle by using DR Dynamic Railway Wagon scales which are especially used for weighing load carrying trains. They save a significant amount of time and labour costs.

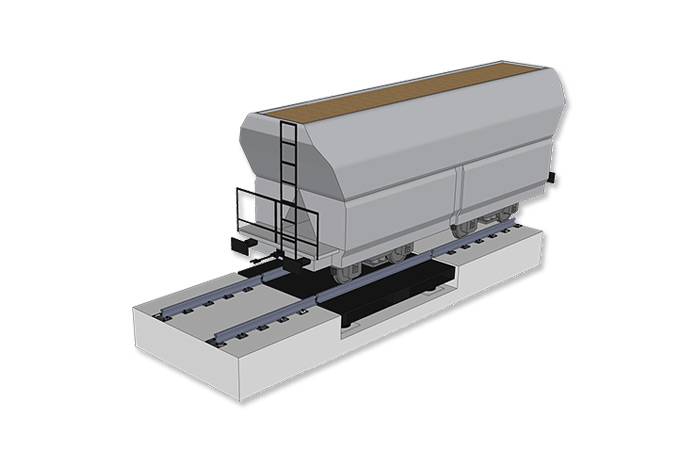

DR-B Dynamic Railway wagon scales are constructed to an appropriate segment of railway in the loading-unloading train stations. Trains that are to be weighed are passed through the scale with a specific constant velocity. Measures the axle weights of the train in motion and sends the data to PC which is connected to the system. The PC calculates the velocity, Wagon weights and the total weight of train by evaluating these data. It determines the net weights by weighing twice or by the tare information entered before. Then prints the desired information.
Features
- rubber footings
- lightning protection
- steel cable coverings
- protected structure against outdoor weather conditions
- strong against overloads and damped loads
- easy and fast assembling
- classification of wagons
- entering brief information about train combination
- Constant tare record
- possibility of adding 3 extra columns
- displaying the axle weights and mean velocity of train while passing
- possibility to place the emblem of the firm on the documents
- Adding, cancelling and authorizing users
- Printing and displaying the weighing records in the desired time interval
- Reporting by company information, date, wagon number, train direction and material
- row and column based easy record entering table
- Option : Entering the wagon number by viewing the pictures of wagon during recording
- %0.5 sensibility for total train weight
- %1 sensibility for single wagon weight
- 2 km/h Minimum measurable vehicle velocity
- 20 km/h Maximum measurable vehicle velocity
Accessories
-
PWI X, Indicator
Options:
Technical specification:
|
Model |
Nominal capacity (ton) |
Minimum capacity (kg) |
Sections e=d* (kg) |
Platform size (m) |
Platform |
Loadcell number |
Loadcell model |
J-Box |
Indicator |
| O30T DR/B 1812 | 60 | 1000 | 50 | 1,8 x 3,50 | Стоманена | 4 | HSC | J-4 | LCA |
**Loadcell
|
Model |
HSC |
|
Protection Class |
IP68 |
|
Mounting Kits |
HSC-EL |
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
***Indicator
|
Model |
LCA |
|
Protection Class |
IP54 |
|
Feeding tension and strength |
90-265VAC 60W |
|
Operating temperature interval |
-10°C ... +40°C |
J-Box connection box
|
Protection class |
IP66 |
|
Material |
Aluminium |
Environment
|
Fixed operating temperature interval |
-10°C ... +40°C |
|
Operating temperature interval |
-40°C ... +80°C |
|
Feeding tension and strength |
220VAC |
|
* Multi interval option available. |
|
