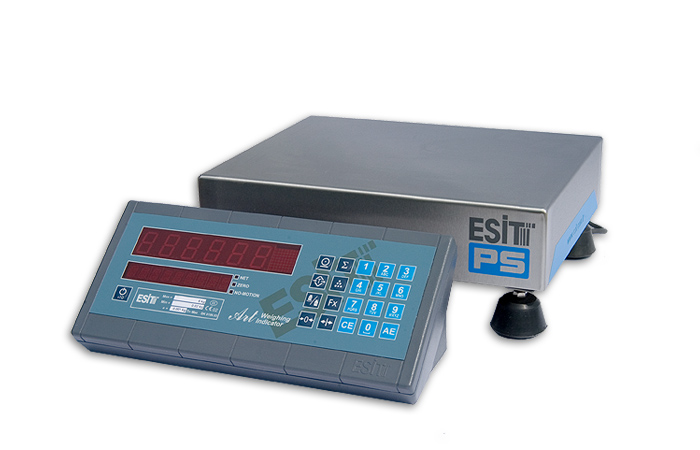

PS 3-100 KG DESKTOP SCALES WITH SINGLE LOAD CELL
Desktop Scales with Single Load Cell 6-15-30-100 kg.
- Fully automatic, single-load cell PS desktop scales are robust and reliable devices designed to withstand heavy industrial conditions.
- Standardly bundled with multi-functional electronic indicator ART, and produced in various capacities (6 kg, 15 kg, 30 kg and 60 kg) and sizes (24x30 cm, 30x40 cm, 40x50 cm) with a stainless-steel platform and load-bearing parts, PS scales aim to meet all types of user requirements.
- PS desktop scales may be integrated with other indicators to be used in various other applications and under many different conditions.
- There are stainless steel and Ex proof types for use in case of humidity and in the presence of flammable materials.
- They optionally feature filling control and industrial control outputs.
Features
- Stainless steel platform and load-bearing parts
- Water-proof load cell in IP66 protection class
- Fully electronic measurement from a single point
- Overload prevention system
- Double-display indicator
- Alphabetic character entry
- Capability to define 7 headings
- Capability to define 100 data fields under one heading and 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Technical specification
|
Metrologic properties |
PS3 | PS6 | PS15 | PS30 | PS60 | PS100 |
|
Capacity |
3 kg | 6 kg | 15 kg | 30 kg | 60 kg | 100 kg |
|
Division |
1 г | 1 g | 2 g | 5 g | 10 g | 20 g |
|
Division (Legal trade) |
– | 2 g | 5 g | 10 g | 20 g | 50 g |
|
Linearity (Legal trade) |
1.5 g | 2 g | 5 g | 10 g | 20 g | 50 g |
|
Repeatability (Legal trade) |
1.5 g | 3 g | 6 g | 15 g | 30 g | 75 g |
|
Max. display division |
1/15,000 | 1/30,000 | ||||
|
No-motion time |
0.5-3 sec | 0.5-3 sec | 0.5-3 sec | 0.5-3 sec | 0.5-3 sec | 0.5-3 sec |
|
Platform |
||||||
|
Materials |
Stainless Steel |
|||||
|
Protection class |
IP66 | |||||
|
Loadcell / Loadcell number |
1 pc | |||||
|
Platform dimensions / Platform weight |
24×30 cm / 3 kg | 24×30 cm / 6 kg | 24×30 cm / 6 kg | 30×40 cm / 8,5 kg | 24×30 cm / 6 kg | 30×40 cm / 8,5 kg |
| 40×50 cm / 13,5 kg | 30×40 cm / 8,5 kg | 40×50 cm / 13,5 kg | ||||
|
Indicator |
||
|
Model |
ART | |
|
Material |
Plastic |
|
|
Protection Class |
IP54 | |
|
Indicator |
Red LED, 6-digit weight, 9-digit alphanumeric operator display |
|
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
|
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
|
|
Weight |
1.3 kg | |
|
Environment |
||
|
Operating temperature range |
-10°C…+40°C | |
|
Storing temperature range |
-20°C…+70°C | |
|
Excitation voltage and power |
220VAC – 50Hz (12-24 VDC по избор) | |
