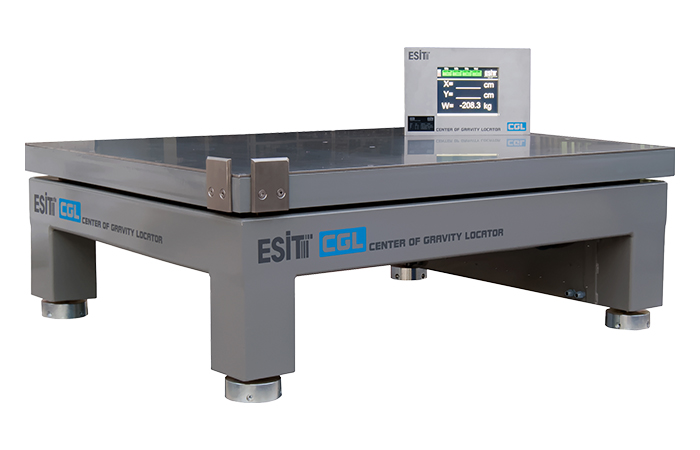

CGL
Centre of Gravity Location
The RL scales, equipped with four load cells and fully electronic, are designed with a very robust structure suitable for heavy industrial environments
-
Produced in various sizes and capacities, the standard ART model multifunctional electronic indicator used with the RL scales meets the user's weighing requirements.
-
The RL scales can also be used with other indicators in different fields and environments.
-
Separate indicator and load cell options are available for wet areas, as well as environments with flammable and explosive materials.
Features
- Stainless steel or electrostatic painted steel components and IP 66 protection class waterproof load cell
- Single point full electronic measurement
- Overload protection system
- Dual indicator for weight and information display
- Alphabetic information entry
- 7 header definitions
- 100 information entries for one header, 10 entries for others
- 9 definable memory parts counting
- 9 definable memory pricing
- Reporting
- Changeable units
- Usage in different languages
- Automatic multiple tare
- Printer output
- Computer output
- External indicator output
- Date and time
- CE certified
Options:
Technical specification:
|
Metrologic properties |
PS3 | PS6 | PS15 | PS30 | PS60 | PS100 |
|
Capacity |
30000 kg. | |||||
|
Division |
10 kg. | |||||
|
Division (Legal trade) |
10 kg. | |||||
|
Linearity (Legal trade) |
15 kg. | |||||
|
Repeatability (Legal trade) |
15kg. | |||||
|
Max. display division |
1/15,000 | 1/30,000 | ||||
|
No-motion time |
0.5-3 sec | |||||
|
Platform |
|
|
Materials |
Stainless Steel |
|
Protection class |
IP66 |
|
Loadcell / Loadcell number |
1 pc |
|
Platform dimensions / Platform weight |
170×175 cm/1100 kg |
|
Indicator |
|
|
Model |
ART |
|
Material |
Steel |
|
Protection Class |
IP68 |
|
Indicator |
Red LED, 6-digit weight, 9-digit alphanumeric operator display |
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
|
Weight |
1.3kg |
|
Environment |
|
|
Operating temperature range |
-10°C...+40°C |
|
Storing temperature range |
-20°C...+70°C |
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
