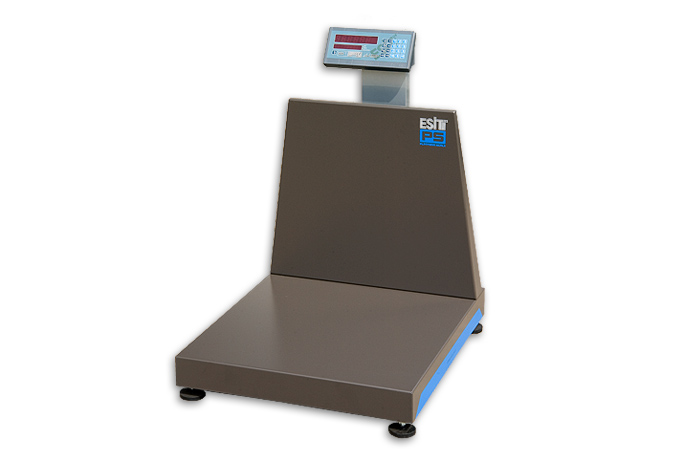

PS 150-300 KG SCALE WITH SINGLE LOAD CELL
Scale With Single Load Cell 150-300-600 kg.
Fully automatic, single-load cell PS scales are robust and reliable devices designed to withstand heavy industrial conditions.
-
Standardly bundled with multi-functional electronic indicator ART
-
Produced in various capacities: 150 kg, 300 kg and 500 kg
-
Single size: 70x80 cm
-
Steel and stainless-steel options.
-
PS scales aim to meet all types of user requirements.
-
PS scales may be integrated with other indicators to be used in various other applications and under many different conditions.
-
There are stainless steel and Ex-proof types for use in case of humidity and in the presence of flammable materials.
-
They optionally feature filling control and industrial control outputs.
Features
- Stainless steel platform and load-bearing parts
- Water-proof load cell in IP66 protection class
- Fully electronic measurement from a single point
- Overload prevention system
- Double-display indicator
- Alphabetic character entry
- Capability to define 7 headings
- Capability to define 100 data fields under one heading and 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Reporting
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Accessories:
• RD Remote Display
Technical specification::
|
Model |
Material |
Capacity (kg) |
Size (cm) |
Division (gr) e 1 - e 2 |
|
150K-PS-7080-SX-ART |
Steel |
150 |
70x80 |
20-50 |
|
150K-PS-7080-SI-ART |
Stainless Steel Pan, Steel Frame |
150 |
70x80 |
20-50 |
|
150K-PS-7080-IX-ART |
Stainless Steel |
150 |
70x80 |
20-50 |
|
300K-PS-7080-SX-ART |
Steel |
300 |
70x80 |
50-100 |
|
300K-PS-7080-SI-ART |
Stainless Steel Pan, Steel Frame |
300 |
70x80 |
50-100 |
|
300K-PS-7080-IX-ART |
Stainless Steel |
300 |
70x80 |
50-100 |
|
600K-PS-7080-SX-ART |
Steel |
600 |
70x80 |
100-200 |
|
600K-PS-7080-SI-ART |
Stainless Steel Pan, Steel Frame |
600 |
70x80 |
100-200 |
|
600K-PS-7080-IX-ART |
Stainless Steel |
600 |
70x80 |
100-200 |
|
Metrologic properties |
|
|||
|
Capacity |
|
|||
|
Division |
|
|||
|
Division (Legal trade) |
|
|||
|
Linearity (Legal trade) |
|
|||
|
Repeatability (Legal trade) |
|
|||
|
Max. display division |
1/15.000 – 1/30.000 | |||
|
No-motion time |
0.5 sn – 3 sn |
|
Platform |
||||
|
Materials |
Steel / Stainless steel |
|||
|
Protection class |
IP65 | |||
|
Loadcell / Loadcell number |
1 бр | |||
|
Platform dimensions / Platform weight |
|
|||
|
Indicator |
||
|
Model |
ART | |
|
Material |
Plastik |
|
|
Protection Class |
IP54 | |
|
Indicator |
Red LED |
|
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|
|
Communication Outputs |
RS485 / RS422 / RS232 /Remote display output / Parallel output to printer | |
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
|
|
Weight |
1.3 kg | |
|
Environment |
||
|
Operating temperature range |
-10°C…+40°C | |
|
Storing temperature range |
-20°C…+70°C | |
|
Excitation voltage and power |
220VAC – 50Hz (12-24 VDCoptional) | |
