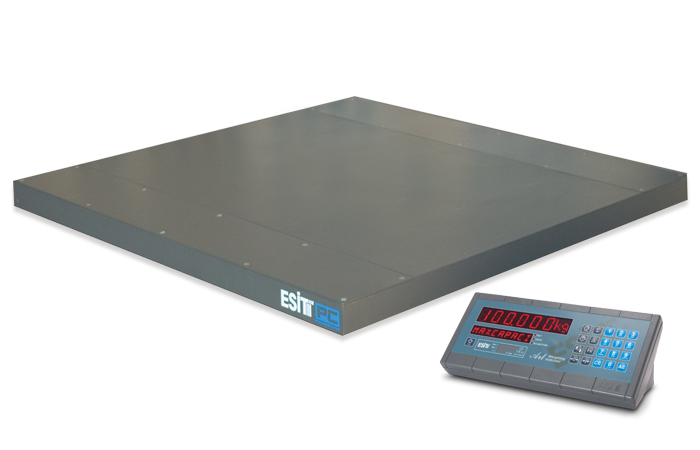

PC CLASSIC BALANCE
Classic Balance 2-3-6-10-20 t.
Fully automatic, four-load cell PC scales offer a robust construction to withstand even the most severe industrial conditions.
- Standardly bundled with multi-functional electronic indicator ART, and produced in various sizes and capacities with steel, galvanized steel and stainless-steel options.
- PC scales aim to meet the users' medium and high capacity weighing requirements.
- Type PC scales may be integrated with other indicators to be used in various other applications and under many different conditions.
- Stainless steel and Ex-proof types are available for use in case of humidity and the presence of flammable materials.
- The scales optionally feature filling control and industrial control outputs.
Features
- Robust structure against severe industrial conditions
- Coated or galvanized steel upper platform and load-bearing parts
- Water-proof load cells in IP68 protection class
- Fully electronic measurement from multiple points
- Suitable for embedded use
- Double-display indicator
- Alphabetic character entry
- 7 different headings
- Capability to define 100 data fields under one heading and 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Reporting
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Technical specification:
|
||||||
|
Metrologic properties |
||||||
|
Capacity |
|
|||||
|
Division |
|
|||||
|
Division (Legal trade) |
|
|||||
|
Linearity (Legal trade) |
|
|||||
|
Repeatability (Legal trade) |
|
|||||
|
Max. display division |
1/15.000 - 1/30.000 |
|||||
|
No-motion time |
0.5sn - 3sn |
|||||
|
Platform |
||||||
|
Materials |
Steel / Galvanized steel / Stainless steel |
|||||
|
Protection class |
IP68 |
|||||
|
Loadcell / Loadcell number |
|
|||||
|
Platform dimensions / Platform weight |
|
|||||
|
Indicator |
||||||
|
Model |
ART |
|||||
|
Material |
Plastic |
|||||
|
Protection Class |
IP54 |
|||||
|
Indicator |
Red LED |
|||||
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|||||
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
|||||
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
|||||
|
Weight |
1.3kg |
|||||
|
Environment |
||||||
|
Operating temperature range |
-10°C...+40°C |
|||||
|
Storing temperature range |
-20°C...+70°C |
|||||
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
|||||
