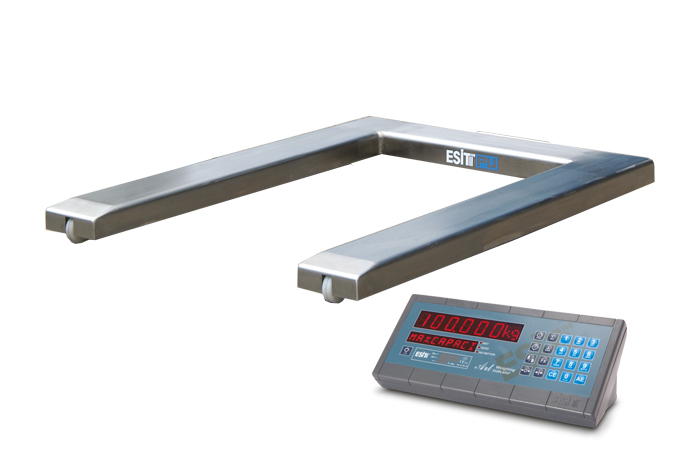

PU PALETTE SCALES
Palette Scales 1500-3000 kg.
PU platform scales facilitate weighing of the palettes carried by Transpalette weighers or forklifts during loading, discharging and stacking operations in the warehouses.
- The four-load cell, U-shaped platform moves on wheels, which makes it easier to relocate.
- The vehicle can be weighed without having to be lifted up on the scale.
- Produced with capacities of 1500 and 3000 kg, PU platform scales are available in steel, galvanized coated steel and stainless-steel types.
- Standardly bundled with ART indicators.
- Different indicator options are also available for operations to be carried out in humid places or in the presence of flammable and/or explosive materials.
Features
- Stainless steel
- Waterproof load cells in IP68 protection class
- Double-display indicator
- Alphabetic character entry
- Capability to define 7 headings
- Capability to define 100 data fields under one heading and 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Reporting
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Technical specification:
|
Model |
Material |
Capacity (kg) |
Size (cm) |
Division (gr) e 1 - e 2 |
|
1V5T-PU6125-IX-ART |
Stainless Steel |
1500 |
60x125 |
0.2-0.5 |
|
3T-PU6125-IX-ART |
Stainless Steel |
3000 |
60x125 |
0.5-1 |
Specifications:
|
|
|
||
|
Metrologic properties |
|||
|
Capacity |
|
||
|
Division |
|
||
|
Division (Legal trade) |
|
||
|
Linearity (Legal trade) |
|
||
|
Repeatability (Legal trade) |
|
||
|
Max. display division |
1/15.000 - 1/30.000 |
||
|
No-motion time |
0.5sec - 3sec |
||
|
Platform |
|||
|
Materials |
Stainless Steel |
||
|
Protection class |
IP68 |
||
|
Loadcell / Loadcell number |
|
||
|
Platform dimensions / Platform weight |
|
||
|
Indicator |
|||
|
Model |
ART |
||
|
Material |
Plastik |
||
|
Protection Class |
IP54 |
||
|
Indicator |
Red LED |
||
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
||
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
||
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
||
|
Weight |
1.3kg |
||
|
Environment |
|||
|
Operating temperature range |
-10°C...+40°C |
||
|
Storing temperature range |
-20°C...+70°C |
||
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
||
