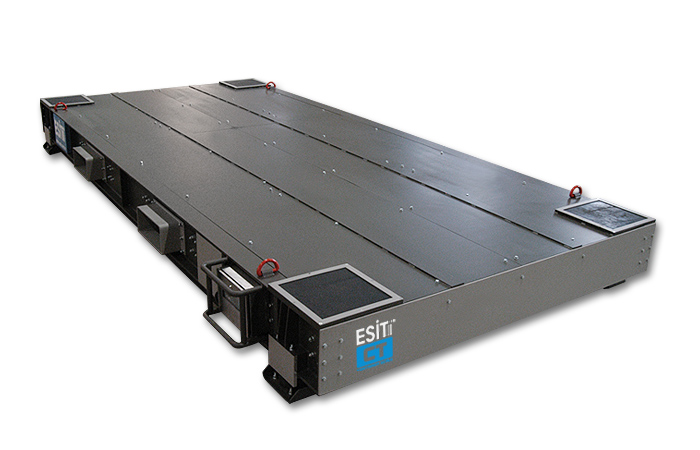

CT CONTAINER SCALE
Container Scale 40000 kg.
Fully electronic, four-load cell CT scales offer a robust construction to withstand even the most severe industrial conditions and harsh transportation effects. CT scales are specifically designed for mobile use of containers weighing up to 40 tons.
Special slots that allow you to move the scale with a forklift provide easy relocation of the scale. CT can be used with a rechargeable internal battery, without the need for external electric power.
Характеристики
- Robust structure against severe industrial conditions Protection pads on the surface corners
- Water-proof load cells in IP68 protection class
- Fully electronic measurement from multiple points Double-display indicator
- Alphabetic character entry
- Capability to define 100 data fields under one heading and
10 data fields under the other headings - 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Stainless steel indicator
- Date and time display
- CE approval
Technical specification:
|
CT40000 |
|
|
Metrologic properties |
|
|
Capacity |
40000kg |
|
Division |
10kg |
|
Division (Legal trade) |
10kg |
|
Linearity (Legal trade) |
15kg |
|
Repeatability (Legal trade) |
15kg |
|
Max. display division |
|
|
No-motion time |
0.5sn - 3sn |
|
Platform |
|
|
Materials |
Steel |
|
Protection class |
IP68 |
|
Loadcell / Loadcell number |
4 pcs |
|
Platform dimensions / Platform weight |
300x650cm / 4400kg |
|
Indicator |
|
|
Model |
ART-S |
|
Material |
Stainless steel |
|
Protection Class |
IP65 |
|
Indicator |
6-digit weight, 9-digit function, red LED |
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / Multi-language / Ticket printing / Date - Time / Pricing |
|
Weight |
4.1kg |
|
Environment |
|
|
Operating temperature range |
-10°C ... +40°C |
|
Storing temperature range |
-20°C ... +70°C |
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
