MR MONORAIL SCALES

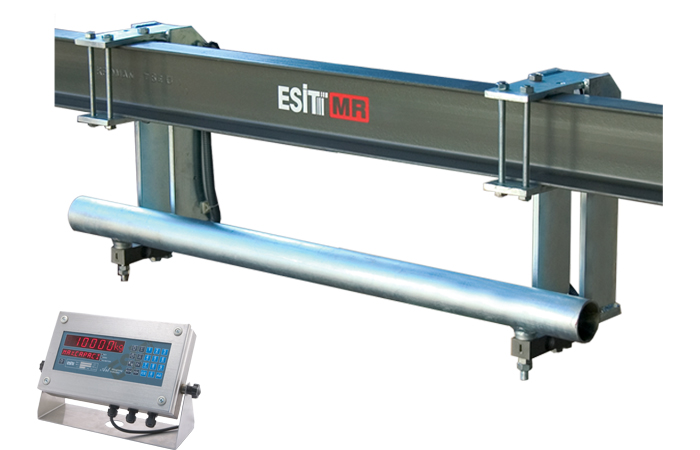

Monorail Scales 600-1500 kg
Fully automatic, double-load cell, microprocessor-controlled MR scales have been especially developed for weighing operations performed on ceiling-mounted rails, which enable meat transfer in slaughterhouses.
Produced with capacities of 600 and 1500 kg, monorail scales are available in galvanized coated steel and stainless-steel types. They are standardly bundled with ART-S indicators.
Features
- Stainless steel
- Waterproof, stainless steel load cells in IP68 protection class
- Waterproof, stainless steel indicator
- Double-display indicator
- Alphabetic character entry
- Capability to define 7 headings
- Capability to define 100 data fields under one heading ana 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Reporting
- Changeable units
- Various language options
- Automatic and multiple taring
- Printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Technical specification:
|
Model |
Material |
Capacity (kg) |
Size (cm) |
Division (gr) e 1 - e 2 |
|
600K-MR1000-GX-ART |
Galvanized Steel |
600 |
100 |
100-200 |
|
600K-MR1000-IX-ART |
Galvanized Steel |
600 |
100 |
100-200 |
|
1V5T-MR1000-GX-ART |
Galvanized Steel |
1500 |
100 |
200-500 |
|
1V5T-MR1000-IX-ART |
Galvanized Steel |
1500 |
100 |
200-500 |
Specifications:
|
|
|
||
|
Metrologic properties |
|||
|
Capacity |
|
||
|
Division |
|
||
|
Division (Legal trade) |
|
||
|
Linearity (Legal trade) |
|
||
|
Repeatability (Legal trade) |
|
||
|
Max. display division |
1/15.000 - 1/30.000 |
||
|
No-motion time |
0.5sn - 3sn |
||
|
Platform |
|||
|
Materials |
Galvanized steel / Stainless steel |
||
|
Protection class |
IP68 |
||
|
Loadcell / Loadcell number |
|
||
|
Platform dimensions / Platform weight |
|
||
|
Indicator |
|||
|
Model |
ART-S |
||
|
Material |
Stainless Steel |
||
|
Protection Class |
IP65 |
||
|
Indicator |
Red LED |
||
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
||
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
||
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
||
|
Weight |
4.1kg |
||
|
Environment |
|||
|
Operating temperature range |
-10°C...+40°C |
||
|
Storing temperature range |
-20°C...+70°C |
||
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
||
