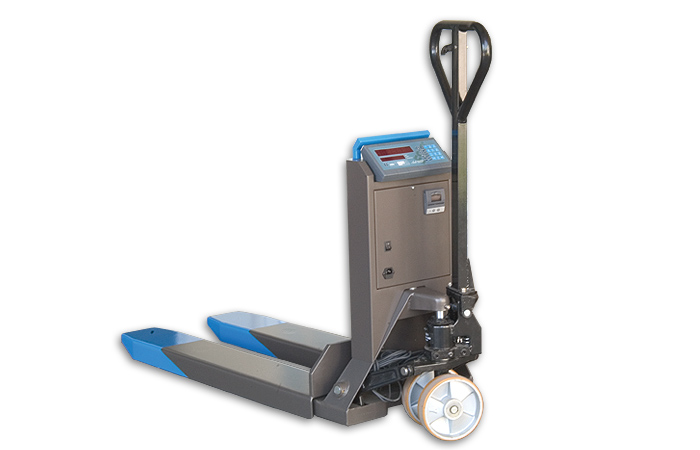

TT TRANSPALETTE WEIGHERS
Transpalette Weighers 2000 kg.
Designed to weigh the materials placed on its palette, TT Transpalette weighers are made of a Transpalette accompanied by a fully automatic 4-load cell electronic weighing system.
Being able to perform weight measurements during loading, discharging and stacking operations in the warehouses, TT increases efficiency. TTs have a weighing capacity of 2000 kg, and they fit all standard palettes.
TT Transpalette weighers are standardly bundled with ART indicators, which can meet all user requirements thanks to its multiple functions.
Features
- Waterproof, stainless steel load cells in IP68 protection class
- Double-display indicator
- Alphabetic character entry
- Capability to define 7 headings
- Capability to define 100 data fields under one heading and 10 data fields under the other headings
- 9 different and storable settings for piece counting
- 9 different and storable settings pricing
- Reporting
- Changeable units
- Various language options
- Automatic and multiple taring
- Barcode printer output
- Computer output
- Remote display output
- Date and time display
- CE approval
Options:
Technical specification:
|
TT2000 |
|
|
Metrologic properties |
|
|
Capacity |
2t |
|
Division |
500g |
|
Division (Legal trade) |
1kg |
|
Linearity (Legal trade) |
1500g |
|
Repeatability (Legal trade) |
500g |
|
Max. display division |
1/15.000 - 1/30.000 |
|
No-motion time |
0.5 sn - 3 sn |
|
Platform |
|
|
Materials |
Steel |
|
Protection class |
IP68 |
|
Loadcell / Loadcell number |
4 pcs |
|
Platform dimensions / Platform weight |
55x115cm / 165 kg |
|
Indicator |
|
|
Model |
ART |
|
Material |
Plastic |
|
Protection Class |
IP54 |
|
Indicator |
Red LED |
|
Keyboard |
Dust and humidity-proof membrane type keyboard with 20 tact type keys |
|
Communication Outputs |
RS485 / RS422 / RS232 / Remote display output / Parallel output to printer |
|
Functions |
Tare / Gross / Zeroing / Totalize / Piece counting / Barcode printing / Report printing / |
|
Weight |
1.3kg |
|
Environment |
|
|
Operating temperature range |
-10°C ... +40°C |
|
Storing temperature range |
-20°C ... +70°C |
|
Excitation voltage and power |
220VAC - 50Hz (12-24 VDC optional) |
