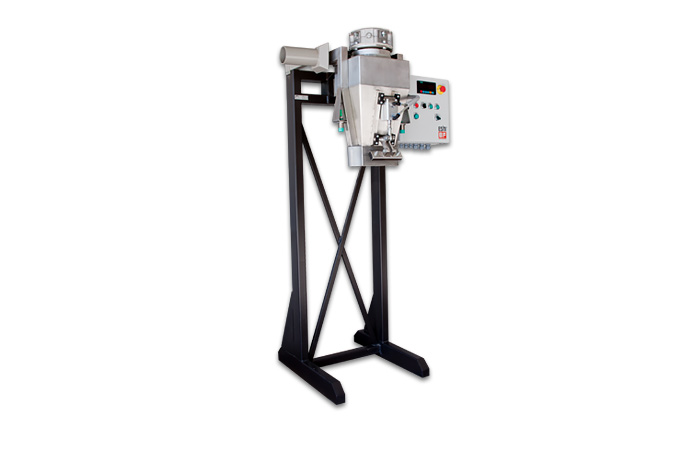

BFT Bagging Scale
Bagging Scale 10-50 kg.
BF Bagging Scales are bagging machines used for filling bulk material into bags with a weight of 10-50 kg. It automatically starts operation after the operator inserts the bag into the filling outlet, it fills the bag with the set quantity accurately in two stages and releases it when filling finishes. The operation continues subsequently. The sewing belt is optional. BF Bagging Scale is microprocessor controlled and fully electronic.
It is possible to obtain quantity and weight reports related to the bags filled and to connect other electronic devices such as PLC and computers. Valve and filling outlet structure are selected depending on the type of the good. It is used for bagging materials such as legumes, granular materials, salt, granular chemicals, pulp, animal feed, grains, cement, construction chemicals, coal, stone and corn.

Features:
- Fast and accurate weighing
- Programmable number of bags to be filled
- Adjustable lower and upper limits
- Warning for out-of-tolerance weighing
- Upper chamber level control
- Weight quantity memories
- Alarm system against failures
- Computer and printer output options
- Microprocessor controlled and full electronic
Options:
Technical specification:
|
Model |
BFT |
|
Capacity |
10-50 kg |
|
Maximum Accuracy |
± % 0,1 |
|
Filling Rate |
6 bags/minute |
|
Number of Load Cells |
1 |
|
Construction |
Steel / Stainless Steel |
|
Area of Use |
Granular Materials, Granular Chemicals |
