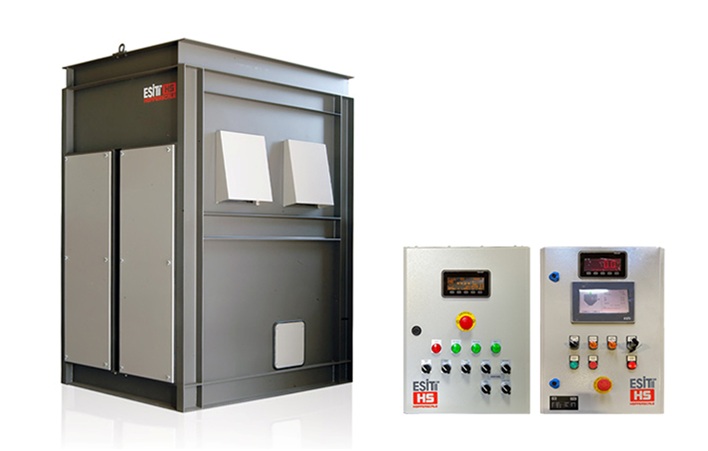

HS Hopper Scale
Hopper Scale 20-1200 m3/h
Hopper scales are used for weighing bulk materials, such as leguminous plants, cereal plants, mine ore, chemicals etc, especially during unloading of a ship or conveying the materials inside a silo or from one silo to another. The process is quite fast so 1200 tons per hour can be reached.
Features:
- RS 232-422-485 Output
- Profibus output
- Modbus output
Options:
Technical Specifications
|
Model |
Capacity m3/h |
Capacity t/h |
Bunker Capacity kg |
Width Length m |
Height m |
Section kg |
|
HS 50 |
50 |
37.5 |
150 |
1.3x1.1 |
2 |
0.1 |
|
HS 100 |
100 |
75 |
300 |
1.3x1.1 |
2.3 |
0.2 |
|
HS 200 |
200 |
150 |
800 |
2.1x1.6 |
2.8 |
0.5 |
|
HS 300 |
300 |
225 |
1200 |
2.4x2 |
3.2 |
1 |
|
HS 400 |
400 |
300 |
1500 |
2.5x2 |
3.5 |
1 |
|
HS 600 |
600 |
450 |
2500 |
2.5x2.8 |
3.5 |
2 |
|
HS 800 |
800 |
600 |
3500 |
2.5x2.8 |
4 |
2 |
|
HS 1000 |
1000 |
750 |
4000 |
3.4x3 |
4 |
2 |
|
HS 1200 |
1200 |
900 |
5000 |
3.4x3 |
4.5 |
2 |
Areas of Use:
Food
Minning
Agriculture & Farming
