AWS AIRCRAFT WEIGHING SYSTEM

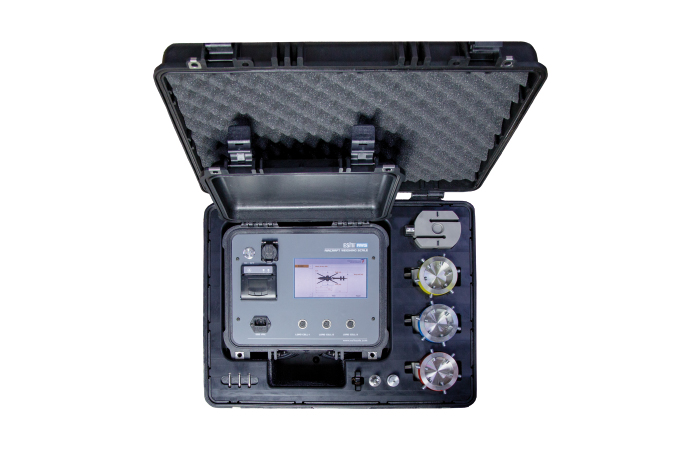

Esit AWS system is a portable aircraft weighing system with integrated center of gravity calculator. System consist of a rugged cased indicator, 3 loadcells and required accesories for center of gravity measurement. It can be easily carried with its’ wheeled carrying case which has also high protection class. Weighing are performed by the use of 7” touch panel and the results are stored. There is a built in termal printer and USB port for weighing reports.

Specifications:

Load Cell

Capacity

2 t

Accuracy class (OIML R60)

C3

Rated output (Cn)

2 ± 0.1% mV / V

Ultimate load

%200 Emax

Indicator

Accuracy class

6000d (III)

Protection Class

  IP68

Operating Temperature

 -10 ~ 50 C

Display

7” Touch panel

Report

 USB and Thermal Printer

Power Requirement

100 ~ 240 V AC

Complete System

Dimensions

630x475x292mm Wheeled Bag

Weight

30kg
