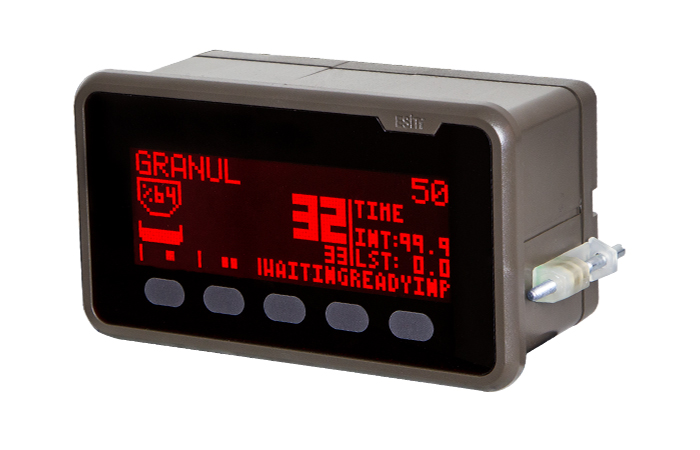

ECI-BF FILLING FEATURED WEIGHING CONTROLLER

With its updated hardware, bright screen and filling software structure; New ECI indicator presents functionality, performance and ease of use significantly higher than industrial standards. Bearing standard ECI Indicator is all features, ECI-BF offers bag filling, scale filling or ventilated filling options on one-speed or two-speed options with an increasing or decreasing amount logic.

Simultaneous filling, total filling, filling time, average filling time and simultaneous filling percentage can be followed from its display.

Features;

  • Bag filling program, option to choose 16 different products

  • Coarse-fine filling, bag, scale or ventilated filling option

  • Built-in 4-Relay card

  • New bright graphics display, showing the filling process

  • Automatic shoot

  • Out of tolerance signal

  • Adaptive, indexed menu system

  • Easy connection with connectors (Solder-free)

  • 1600 Hz measurement / 800 Hz data output rate

  • USB reporting / update / backup / calibration backup

  • Possibility of moving calibration data to other devices

  • Multi-language option

  • gResolver multi-frequency vibration filtering technology

  • Easy calibration (mV, factory, coefficient, digital)

  • Intelligent plug and play type option cards and modular expansion

  • Galvanic isolated communication docks

  • Internal thermometer

  • Service menu (self diagnostic)

  • Printer support

  • USB, RS232 serial communication and external display output

Options;

Calibration

With the standard feature of “Calibration Doctor”, ECI indicator allows users to calibrate systems with simple steps, while calibration quality is inspected. Therefore, wrong or incomplete calibration is prevented. Furthermore, calibration can either be made with standardized weights, digitally via input values or via load cell mV input. Since a backup can be taken of calibration values to the main board of the indicator, calibration values can be restored in case of a fault.

gResolver Special Filtering

ECI Weighing Indicator includes gResolver filtering software, and design. gResolver Special Filtering software filters all damaging vibration effects on weighing operations, enabling both sensitivity and fast weighing.

Technical specification:

Sensitivity
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5uV/d
Sensitivity % 0.0015 FS
Zero and gain stability 2 ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter gResolver (Intelligent Adaptive FIR filter)
Reading frequency 6.25-800 Hz
Load Cell
Number of Loadcells allowed 10 pieces 350 Ω or 32 pieces 1100 Ω
Analog input range (-25mV with +25mV) or (-1.6V with +1.6V)
Excitation voltage 10V DC
Environment
Operating temperature range (OIML approved) -10°C +40°C
Storage temperature range -20°C +70°C
Operating voltage and power 12-24 VDC, 5W
Operator handling and Display
Keyboard 5 Touch key, special function according to situation
Weight Display 4.5″ Bright Graphics Display
Function Display Gross, net, stable, zero, unit (g, kg, t, lb, lt, mV/V, m3)
Program Display Bag Filling Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) – 18×12.5×11 cm
Communication                                                 Standard                                         Optional
Serial communication output RS232                                                      RS232 / RS422 / RS485
Printer output Serial printer            –
Remote Display Output –                                                                      –
Internal Relay Built-in 4 relay card                                  –
