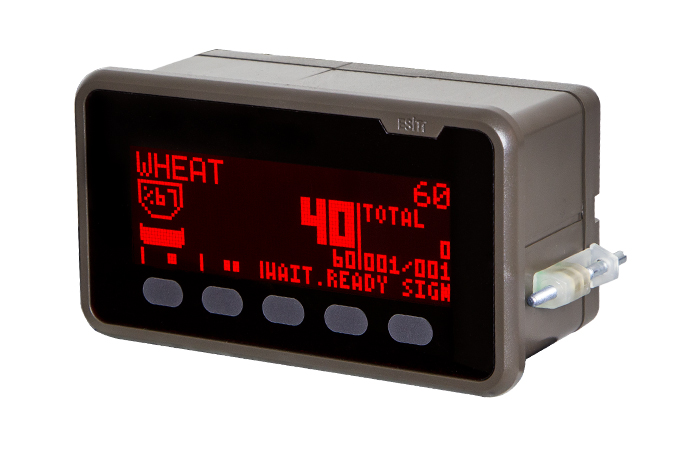

ECI-HS Hopper Scale Weighing Controller

With its updated hardware, bright display and specialized hopper scale software, the new ECI indicator offers functionality, performance and convenience significantly exceeding industrial standards. In addition to the standard features of the ECI indicator, the ECI-HS model provides adjustable coarse-fine dosing, quantity dosing, flow measurement and automatic shot calculation, which facilitates automation.

Features

  • Hopper scale program

  • Quantity dosing or flow measurement

  • Coarse-fine dosing

  • Built-in 4-relay card

  • New bright graphic display showing the filling process

  • Automatic shot calculation

  • Signal on deviation from permissible limits

  • Adaptive, indexed menu

  • Easy connection via connectors (no soldering)

  • 1600 Hz measurement frequency / 800 Hz data output frequency

  • USB reporting, update, backup and calibration archiving

  • Possibility to transfer calibration data to other devices

  • Multi-language interface

  • gResolver – multi-frequency vibration filtering technology

  • Easy calibration (mV, factory, coefficient, digital)

  • Intelligent plug-and-play optional cards and modular expansions

  • Galvanically isolated communication ports

  • Built-in thermometer

  • Service menu (diagnostics only)

  • Printer support

  • USB, RS232 serial interface and external display output

Options:

Functions

  • Hopper scale program

  • Quantity dosing or flow measurement

  • Coarse and fine dosing

  • Built-in 4-relay card

  • New bright graphic display with visualization of the filling process

  • Automatic cycle (shot) calculation

  • Signaling on deviation from set limits

  • Adaptive and indexed menu

  • Easy connection via connectors without the need for soldering

  • Measurement frequency: 1600 Hz / data output frequency: 800 Hz

  • USB functions: reporting, update, archiving and calibration backup

  • Possibility to transfer calibration data to other devices

  • Multi-language interface

  • gResolver – multi-frequency vibration filtering technology

  • Easy calibration (mV, factory, coefficient and digital)

  • Intelligent plug-and-play expansion modules and optional cards

  • Galvanically isolated communication ports

  • Built-in thermometer

  • Service menu for diagnostics

  • Printer support

  • Communications: USB, RS232 serial interface and external display output

Calibration:

With the standard “Calibration Doctor” function, the ECI indicator allows easy calibration while checking its quality. This prevents errors or incomplete calibration. In addition, calibration can be performed with reference weights, digitally by entering values or via the load cell mV input. Since the indicator allows a backup of the calibration values to be saved on the main board, these values can be restored in case of a fault.

Special Filtering (gResolver Filtering):

The ECI indicator includes special interference filtering software (gResolver Special Filtering). This technology removes harmful vibrations that can affect the weighing process, providing both precision and speed in measurements.

Sensitivity
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5uV/d
Sensitivity 0.0015 % FS
Zero and gain stability 2 ppm/°C
A/D converter 24-bit Sigma-Delta
Digital filter gResolver (Intelligent Adaptive FIR filter)
Reading frequency 6.25-800 Hz
Load Cells
Number of allowed load cells 10 pcs 350 Ω or 32 pcs 1100 Ω
Analog input range (-25mV to +25mV) or (-1.6V to +1.6V)
Excitation voltage 10V DC
Environment
Operating temperature range -10°C to +40°C
Storage temperature range -20°C to +70°C
Operating voltage and power 12-24 VDC, 5W
Operator handling and Display
Keyboard 5 touch keys, special function according to situation
Weight Display 4.5“ Bright Graphic Display
Function Display Gross, net, stable, zero, unit (g, kg, t, lb, lt, mV/V, m3)
Program Display Weighing Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) – 18×12.5×11 cm
Communication                                                 Standard                                         Optional
Serial communication output RS232                                                      RS422 / RS485
Printer output Serial connected printer            –
Remote Display Output √                                                                      –
Digital inputs / outputs –                                                   4-20mA / 0-10V (16bit)
Internal Relay Built-in 4 Relay Card                                –
