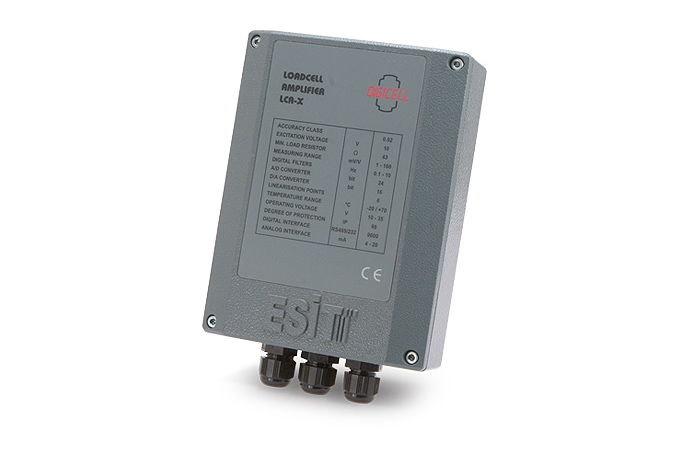

LCA-X LOAD CELL TRANSMITTER
LCA-X load cell amplifiers weigh various tanks and similar units and enable remote monitoring of all measurements in the most cost-effective way possible. Weights of one or more units being weighed by load cells can be measured by LCA-X devices in the measurement field and monitored via a remote computer. The amplifier itself does not have a dLCA-X distinguishes itself by enabling computerized setup of all parameters through the Modbus communication protocol. Remote access to settings is provided via the embedded Modbus protocol.isplay.
This allows monitoring and programming of several LCA devices connected to the same communication bus from a single control point, such as a PC or PLC.Two Windows™-based software programs have been developed for communication: Dlms_VP (Virtual Panel), which communicates with a single LCA device for remote setup, and Dlms_NW (Network), which allows viewing multiple LCA devices simultaneously. The aluminum cast housing makes the device serviceable even under dusty, humid, and corrosive conditions.
Features:
Dust and moisture resistant, aluminum cast housing
Zeroing within the entire measurement range
Gain adjustment for load cell output
Digital linearization
Digital temperature compensation
Remote access to all internal parameters (Modbus)
Single LCA communication capability
PC software support
RS232 / RS485 serial output
Areas of Use:
- • Tank Weighing Systems
- • Overload Control Systems
| Specifications | Value |
| Accuracy | |
| Accuracy class (OIML approved) | 7000d (III) |
| Input sensitivity | 0.5µV/digit |
| Sensitivity | 0.003% |
| Zero and gain stability | 3.6ppm/°C |
| A/D converter | 24-bit Sigma-Delta |
| Digital filter | Adjustable numerical filtering |
| Reading frequency | 50Hz |
| Load Cell | |
| Number of load cells allowed | 8 (350 ohm) |
| Analog input range | ±160mV/V |
| Excitation voltage | 10V DC |
| Environment | |
| Operating temperature range (OIML approved) | -10°C to +40°C |
| Storage temperature range | -20°C to +70°C |
| Operating voltage and power | 10-35V DC – 5W |
| Operator Handling and Display | |
| Keyboard | – |
| Weight display | – |
| Function display | – |
| Program Indicator | – |
| Housing | |
| Material and protection class | Aluminum, IP66 |
| Weight | 1 kg |
| Package weight and dimensions | 1.1 kg, 15x24x6 cm |
| Communication | Standard Optional |
| Serial communication output | RS232 / RS485 RS422 |
| Parallel printer output | – – |
| Binary (BCD) output | – 1+18 bit* |
| Remote display output | – √ |
| Digital input/output | – 2 outputs (2A relay)* |
| Analog output | – 4-20mA / 0-10V |
*BCD and digital input/output options cannot be used at the same time.
