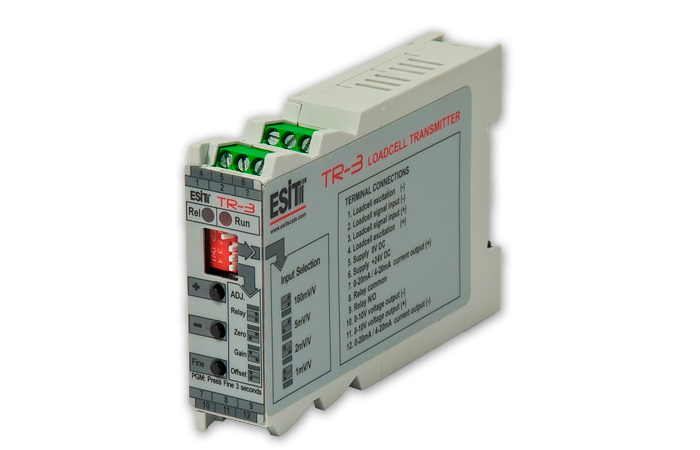

TR-3 Load Cell Analog Signal Transmitter

TR3 is a microprocessor-based transmitter that processes load cell signals for industrial use. It serves as a signal converter for PLCs or similar industrial control devices in weighing, batching, level control, and process control applications. With a user-settable relay output, it can control stand-alone automation systems for simple tasks like on-off switching and filling/emptying.

The rail-mounting case integrates seamlessly with other panel components and simplifies connections. Designed for industrial environments, the device features three-way galvanic isolation. This eliminates the risk of load cell damage from leakage currents and ensures output stability is unaffected by electrical noise. Since all adjustments are made via buttons, the drift common in potentiometric elements is eliminated.

Features:

  • Three-way galvanic isolation

  • Internal power supply for current output (no external supply needed)

  • Zero setting up to 50% of full range

  • Error indicator for over-voltage conditions

  • Relay state indication

  • 0–20 mA current and 10V voltage output

Options:

Areas of Use:

  • • Chemistry & Petrochemistry
  • • Cement & Construction
  • • Machinery
  • • Iron & Steel
  • • Textile

Technical Parameter Value
Accuracy 0.03
A/D conversion 24-bit Sigma-Delta
Conversion rate 50Hz–400Hz
Reading frequency 50Hz–400Hz
Current output (load impedance) < 500 ohm
Voltage output (load impedance) > 5k ohm
Load Cells
Number of load cells allowed 8 (350 ohm)
Analog input range 1 mV/V – 2 mV/V – 5 mV/V – 160 mV/V
Excitation voltage 10V
Isolation Voltage
Power Supply – Load cell 1.5 kV
Power Supply – Output signal 1.5 kV
Load cell – Output signal 1.5 kV
Environment
Operating temperature range (OIML approved) 0°C to +50°C
Storage temperature range -20°C to +70°C
Operating voltage and power 24V DC (18V ... 36V) – 5W
Operator Handling and Display
Keyboard 3 Tactile keys, 4-DIP switches
Display –
Housing
Material and protection class Rail mounted, plastic, IP20
Weight 0.1 kg
Package dimensions 0.2 kg, 15x24x6 cm
Communication Standard / Optional
Serial communication port RS-232 (Optional)
Digital input/output 1 relay output (2A)
Analog output 4-20mA / 0-10V
*Note: Serial communication and digital input/output options cannot be used simultaneously.
