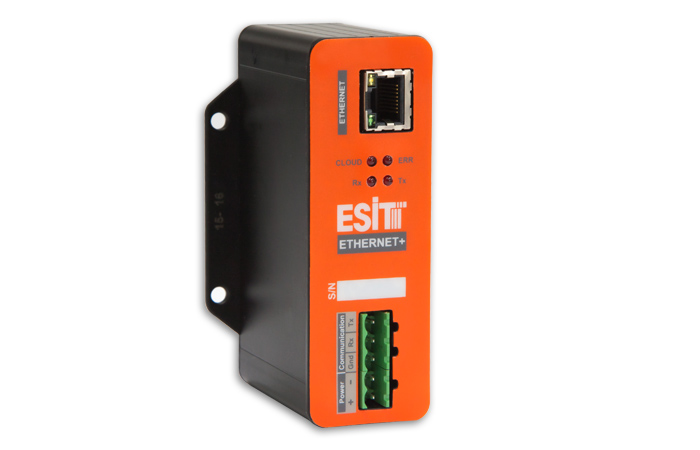

ETHERNET PLUS CONVERTER
Ethernet+ is the device that converts RS 232 serial port of indicators to Modbus/TCP protocol. With this conversion, the data on any indicator can be read from the existing network through the serial port with Modbus protocol and can be sent to a remote display,
PLC or a PC. Ethernet+ is the most efficient option to read the data of the indicators from a remote point and the weighing system to be integrated into the existing monitoring/management system.
|
General |
|
|
Power |
12-24 VDC |
|
Operation Temperature |
-20°C +70°C |
|
Dimensions |
105mmx60mmx35mm |
|
LED Indicators |
Cloud Error, Cloud Connection, Serial RX, Serial TX |
|
Serial Communication |
|
|
Baud rate |
9600-115200 bps |
|
Data Bits |
8 |
|
Parity |
None |
|
Stop Bits |
1 |
|
Flow Control |
None |
|
Ethernet Communication |
|
|
LAN |
10Base T and 100Base T |
|
Data Speed |
10/100 Mbps |
|
Protocols |
TCP,IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP |
|
IP Mode |
Static, DHCP |
Indicators and Control Devices :
ECI Panel Type Weighing Indicator
LCA-D Load Cell Transmitter Load Cell Transmitter
ART-S Stainless Style Box Stainless Style Box
PWI-P Panel Type Panel Type
PWI-C Column Type Column Type
PWI-D Desk Type Desk Type
PWI-T Desktop weighing indicator Desktop weighing indicator
PWI-X Desk Type Desk Type
PWI-FILL Stainless Style Box Stainless Style Box
PWI-EX Ex-Proof Box Ex-Proof Box
LCA-X Load Cell Transmitter Load Cell Transmitter
