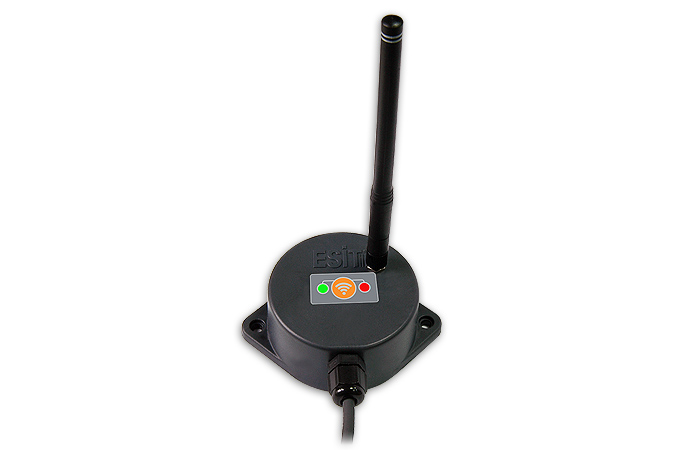

WIFI PLUS WIRELESS UNIT
Wi-Fi Plus is a wireless communication system designed for maintaining wireless communication between any indicator and other remote devices, such as remote displays, PLC’s, PC’s, etc… Wi-Fi+ system consists of two RF modules and a central antenna module.
The RF modules are connected to an indicator on one side and any desired device for communication on the other. The information on the indicator is transmitted to another end instantly. Wi-Fi+ is the most effective system for transmitting weighing data in a facility, also with a significant cost advantage.
|
Model |
Wifi+ Single |
Wifi+ Dual |
|
System ED Device Number |
2 |
4 |
|
System AP Device Number |
1 |
1 |
|
Voltage |
12-24 VDC |
12-24 VDC |
|
Wireless Communication Frequency |
868 MHz |
868 MHz |
|
Signal Power |
10 dBm |
10 dBm |
|
Power Consumption |
1W |
1W |
|
Serial Communication Speed |
9600bps,8b,n,1s |
9600bps,8b,n,1s |
|
Communication Distance |
50 m |
50 m |
|
Operating Temperature |
-10 +40 °C |
-10 +40 °C |
|
Protection Class |
IP 65 |
IP65 |
Indicators and Control Devices :
ECI Panel Type Weighing Indicator
LCA-D Load Cell Transmitter Load Cell Transmitter
ART-S Stainless Style Box Stainless Style Box
PWI-P Panel Type Panel Type
PWI-C Column Type Column Type
PWI-D Desk Type Desk Type
PWI-T Desktop weighing indicator Desktop weighing indicator
PWI-X Desk Type Desk Type
PWI-FILL Stainless Style Box Stainless Style Box
PWI-EX Ex-Proof Box Ex-Proof Box
LCA-X Load Cell Transmitter Load Cell Transmitter
