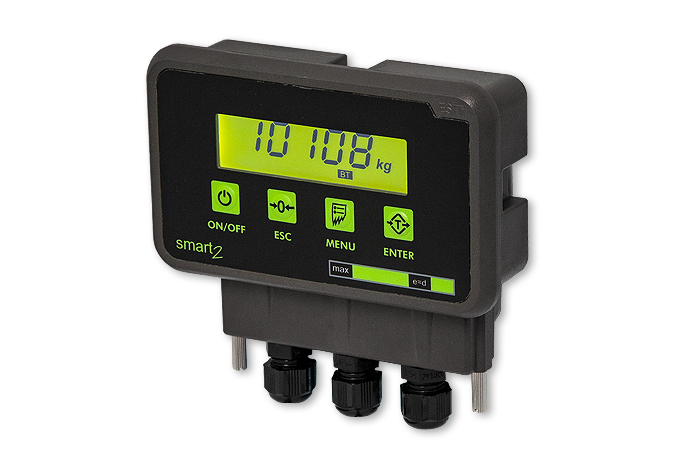

SMART-2 MULTI FUNCTIONAL WEIGHING INDICATOR

Specially developed for such devices and machines which control limit values via weight measurements, SMART-2 is a small and simple weighing indicator with rugged and durable housing.

It is a reliable and cost-effective solution in electronic detection of and protection against overloads upon cranes and elevators. With its compact design including Wi-Fi or Bluetooth connection capability, Smart2 offers a remote connection with smartphones and tablets.

Features;

  • Impact-resistant plastic housing

  • 5-digit LED weight display

  • Dust and humidity-proof membrane keyboard with tact keys

  • Taring, zeroing, function keys

  • Zeroing within the entire measurement range

  • Gain adjustment for load cell output

  • RS232/RS485 serial output

  • Internal 2 relay outputs

  • Analog output (4-20 mA)

  • Analog output (0-5 V)

  • Optional Wi-fi and Bluetooth connections

  • Optional Angle measuring sensor

  • Android smart phone application

  • Modbus communication

Options:

  • RS485

Accuracy
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5µV/d
Sensitivity 0.001%
Zero and gain stability 4ppm/°C
A/D converter 20bit
Digital filter Adjustable numerical average
Reading frequency 10Hz
Angle measuring range ±90°
Angle measuring step 0.5°
Loadcell
Number of Loadcells allowed 4 pcs (350Ω)
Analog input range ±1, ±2, ±3mV/V
Excitation voltage 5V DC
Environment
Operating temperature range (OIML approved) -10°C +40°C
Storage temperature range -20°C +70°C
Operating voltage and power 6-24V DC – 2W
Operator handling and Display
Keyboard Dust and humidity-proof membrane keyboard with 4 tact type keys
Weight display LCD, 5 digits, 12mm character size
Function display Static load, True zero, Tare, Calibration, Relay 1-2-3-4, Input 1-2, Bluetooth, Wi-Fi, Power status indicators
Program Indicator –
Housing
Material and protection class Plastic, IP66
Weight 0.2kg
Package weight and dimensions –
Communication Standard                                Optional
Serial communication output RS232                                                    RS485
Digital input 2                                                                       –
Relay Output 2 pcs (1A)                                                     –
Analog output 4-20mA / 0-5V                                            –
Bluetooth –                                                                      √
Wi-Fi –                                                                      √
Angle measuring sensor –                                                                      √
