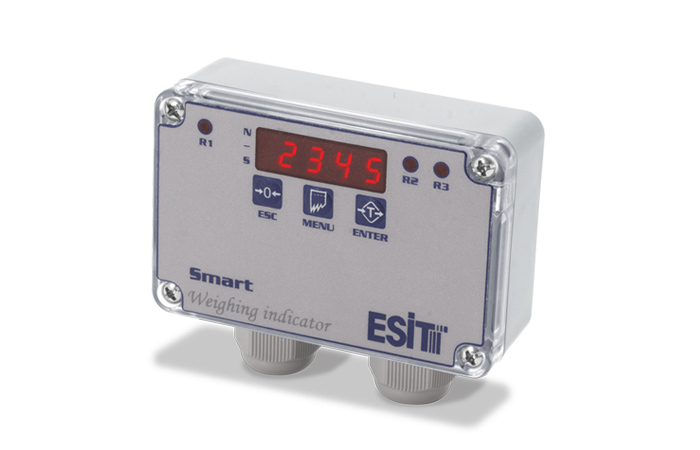

SMART-P PANEL TYPE
Specially developed for such devices and machines which control limit values via weight measurements, SMART-P is a small and simple weighing indicator with a rugged and durable housing.
It is a reliable and cost-effective solution in electronic detection of and protection against overloads upon cranes and elevators.
Features;
-
Impact-resistant plastic housing
-
4-digit red LED weight display
-
Dust and humidity-proof membrane keyboard with tact keys
-
Taring, zeroing, function and adjustment keys
-
Zeroing within the entire measurement range
-
Gain adjustment for load cell output
-
RS232/RS485 serial output
-
Internal relay output
-
Analog output (4-20 mA)
-
Analog output (0-5 V)
| Accuracy | |
| Accuracy class (OIML approved) | 1000 (III) |
| Input sensitivity | 0.5µV/digit |
| Sensitivity | 0.015% |
| Zero and gain stability | 5ppm/°C |
| A/D converter | 16bit |
| Digital filter | Numerical filtering |
| Reading frequency | 10Hz |
| Loadcell | |
| Number of Loadcells allowed | 4 pcs (350ohm) |
| Analog input range | ± 2mV/V |
| Excitation voltage | 5V DC |
| Environment | |
| Operating temperature range (OIML) | -10°C +40°C |
| Storage temperature range | -20°C +70°C |
| Operating voltage and power | 10-35V DC – 5W |
| Operator handling and Display | |
| Keyboard | Dust and humidity-proof membrane keyboard with 3 tact keys |
| Weight display | 6 mm, 4-digit, 7-segment LED display |
| Function display | Centre-of-zero, no-motion LEDs |
| Program Indicator | – |
| Housing | |
| Material and protection class | Plastic, IP65 |
| Weight | 0.2kg |
| Package weight and dimensions | 0.3kg, 15x24x6cm |
| Communication | Standard Optional |
| Serial communication output | RS232/RS485 – |
| Parallel printer output | – – |
| Binary (BCD) output | – – |
| Remote display output | – – |
| Digital input / output | 1 input / 3 outputs (2A relay) – |
| Analog output | 4-20mA / 0-5V – |
*BCD and digital input/output options cannot be used at the same time. Areas of Use: Overload Control Systems
