TYPE CDI

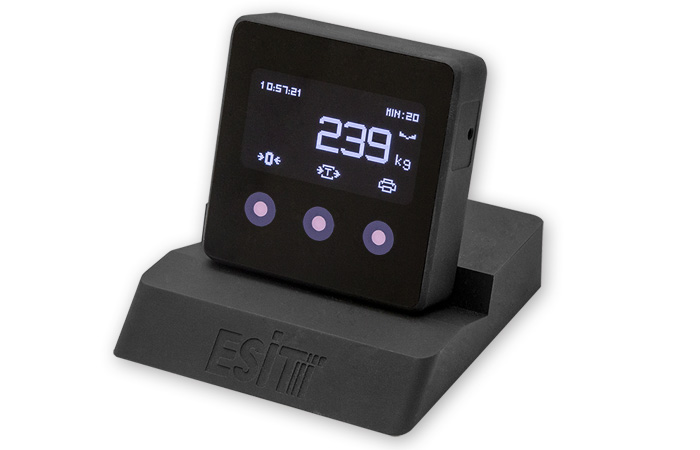

New CDI Digital Weighing Indicator is designed for weighing with digital load cells and to be used in vehicle scales. There are two different models of CDI, compatible with digital load cells with Modbus or Canbus outputs. Although CDI is designed for desktop use, there are optional casings for column or panel mounting. CDI clearly indicates the weighing process via various warnings, faults, and graphics on the screen.
Standard USB communication allows for free firmware updates and backup functions.
Features:
-
Weighing program with digital load cells
-
Communication with load cells via Modbus or Canbus protocols
-
Modes: Indicator, platform scale, vehicle scale
-
Faulty load cell warning
-
Easy connection with connectors (solder-free)
-
Update and backup via USB
-
Calibration and settings backup for easy recovery
-
Easy corner calibration software
-
Easy scale and load cell diagnosis
-
Gravity correction coefficient
-
Real Time Clock (RTC) for calibration tracking
-
Indicator and load cells error logging
-
Communication via USB, Modbus TCP, Wi-Fi or Bluetooth
Options:
Connectivity
• Serial port over USB – Communication with PC for device setup, calibration, and load cell diagnosis
• Wi-Fi & Bluetooth (optional) – Device and load cell setup, diagnosis, and calibration
• Modbus TCP – Outputs indicator data through Ethernet communication
• NFC (optional) – Calibration seal for extra security
Technical Specifications:
| Specifications | Description |
| Load Cells | |
| Reading speed | Canbus 500 kb/s – Modbus 115.200 kb/s |
| Amount of load cells can be fed | USB for 4 pcs, external power for 16 pcs |
| Excitation voltage | 12V |
| Environment | |
| Operating temperature (OIML approved) | -10°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Operating voltage and power | (USB2.0-USB3.0) 5V VDC, 2.5W |
| Operator Handling and Display | |
| Keyboard | 3 keys, special functions according to combination |
| Weight display | 2.42″ monochrome OLED graphic display |
| Function display | Gross, net, stable, zero, units (g, kg, t, lb, lt, mV/V, m3) |
| Program display | D |
| Housing | |
| Material and protection class | Impact-resistant plastic (PC), IP54 (Front panel IP65) |
| Weight | 0.36 kg (Standard) |
| Package weight and dimensions | 0.65 kg (Standard) – 18×12.5×11 cm |
| Communication | |
| Serial interface | USB |
| Ethernet communication output | Modbus TCP |
| Wireless communication output | Wi-Fi or Bluetooth |
