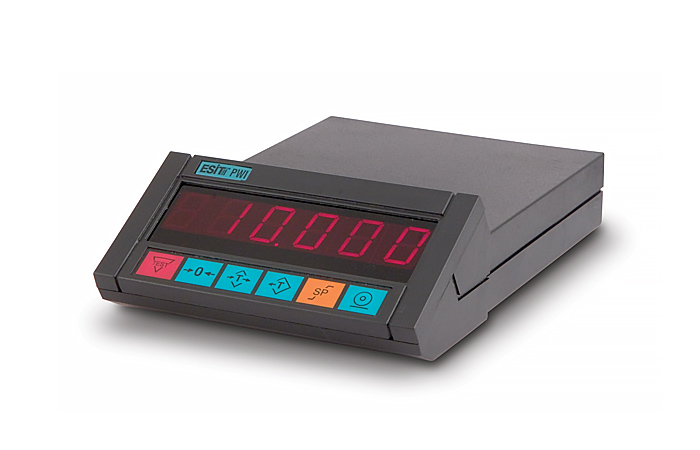

PWI-D DESK TYPE

The most basic member of the PWI series, the desktop-type PWI-D weight indicator offers all the major functions related to weight measurement and it is designed to be used in corporation with all sorts of electronic weighing devices.

PWI-D offers such opportunities as compilation and storing of weight data by exporting them to a computer via its standard serial output. Thanks to their industrial design, PWI-D indicators are serviceable and reliable devices, and they are certified to internationally recognized quality standards.

Features;

  • Plastic housing suitable for use on desktop

  • 6-digit red LED weight display

  • Dust and humidity-proof membrane keyboard with tact keys

  • Taring, zeroing, function and adjustment keys

  • Zeroing within the entire measurement range

  • Gain adjustment for load cell output

  • Excitation and output voltage display for load cell

  • RS232 serial output

Options:

Accessories;

  • RD Remote Display

Specifications Description
Accuracy
Accuracy class (OIML approved) 6000d (III)
Input sensitivity 0.5µV/digit
Sensitivity 0.005%
Zero and gain stability 1.2ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter Adjustable numerical filtering
Reading frequency 6-100Hz
Loadcell
Number of Loadcells allowed 8 (350ohm)
Analog input range ± 10mV/V
Excitation voltage 10V DC
Environment
Operating temperature range (OIML approved) -10°C to +40°C
Storage temperature range -20°C to +70°C
Operating voltage and power 12-24V AC/ 12-36V DC - 5W
Operator handling and Display
Keyboard Dust and humidity-proof membrane keyboard with 6 tact type keys
Weight display 20 mm, 6-digit, 7-segment, red LED (standard) / 20 mm LCD (optional)
Function display kg, no-motion, centre-of-zero LEDs
Program Indicator –
Housing
Material and protection class Plastic, IP54
Weight 0.4 kg
Package weight and dimensions 0.5 kg, 18x24x8.5 cm
Communication Standard                                       Optional
Serial communication output RS232                                                   RS422 / RS485
Parallel printer output –                                                                   –
Binary (BCD) output –                                                                   –
Remote display output –                                                                  √
Digital input/output –                                                                   –
Analog output –                                                                   –

Areas of Use: Industrial Scales: PS 3-100 kg Desktop Scales with Single Load Cell 6-15-30-60-100 kg; PS 150-300 kg Scale with Single Load Cell 150-300-600 kg; PL Platform Scales 300-600-1500 kg; Onboard Weighing Systems; Textile Industry.
